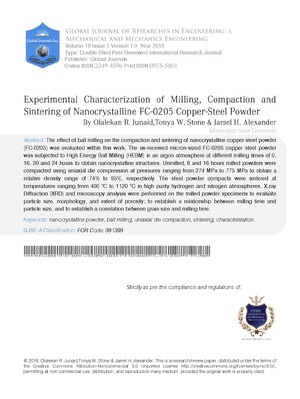

Experimental Characterization of Milling, Compaction and Sintering of Nanocrystalline FC-0205 Copper Steel Powder

Jamel H. Alexander; Olalekan R. Junaid; Tonya W. Stone

Experimental Characterization of Milling, Compaction and Sintering of Nanocrystalline FC-0205 Copper Steel Powder

Jamel H. Alexander * §

Contact

Olalekan R. Junaid

Contact

Tonya W. Stone

Contact

§ Mississippi State University

Experimental Characterization of Milling, Compaction and Sintering of Nanocrystalline FC-0205 Copper Steel Powder

Article Fingerprint

ReserarchID

REE209S

Experimental Characterization of Milling, Compaction and Sintering of Nanocrystalline FC-0205 Copper Steel Powder Banner

AI TAKEAWAY

Connecting with the Eternal Ground

Abstract

The effect of ball milling on the compaction and sintering of nanocrystalline copper steel powder (FC-0205) was evaluated within this work. The as-received micron-sized FC-0205 copper steel powder was subjected to High Energy Ball Milling (HEBM) in an argon atmosphere at different milling times of 0, 16, 20 and 24 hours to obtain nanocrystalline structures. Unmilled, 8 and 16 hours milled powders were compacted using uniaxial die compression at pressures ranging from 274 MPa to 775 MPa to obtain a relative density range of 74% to 95%, respectively. The steel powder compacts were sintered at temperatures ranging from 400 °C to 1120 °C in high purity hydrogen and nitrogen atmospheres. X-ray Diffraction (XRD) and microscopy analysis were performed on the milled powder specimens to evaluate particle size, morphology, and extent of porosity; to establish a relationship between milling time and particle size, and to establish a correlation between grain size and milling time.

References

38 Cites in Article

Reference Format

G Nieman,J Weertman,R Siegel (1991). Mechanical behavior of nanocrystalline Cu and Pd.
S Akhtar,Yeong Khan,Xu Suh,Hayoyue Chen,Laszlo Zhang,Takacs (2006). Nanocrystalline Aluminum: Mechanical Behavior at Quasi-Static and high strain rates, and constitutive modeling.
C Suryanarayana (2002). The structure and properties of nanocrystalline materials: Issues and concerns.
T Nieh,P Luo,W Nellis,D Lesuer,D Benson (1996). Unknown Title.
P Sanders,J Eastman,J Weertman (1996). Tensile behavior of nanocrystlline Cu the Minerals.
George Dieter (1986). Mechanical metallurgy..
Neils Hansen (2004). Hall-Petch relation and boundary strengthening.
K Kumar,H Van Swygenhoven,S Suresh (2003). Mechanical behavior of nanocrystalline metals and alloys11The Golden Jubilee Issue—Selected topics in Materials Science and Engineering: Past, Present and Future, edited by S. Suresh.
M Furukawa,Z Horita,M Nemoto,R Valiev,T Langdon (1996). Microhardness measurements and the Hall-Petch relationship in an AlMg alloy with submicrometer grain size.
S Tjong,Haydn Chen (2004). Nanocrystalline materials and coatings.
M Meyers,A Mishra,D Benson (2006). Mechanical properties of nanocrystalline materials.
Hans Conrad,Jagdish Narayan (2000). On the grain size softening in nanocrystalline materials.
E Bonetti,L Pasquini,E Sampaolesi (1997). The influence of grain size on the mechanical properties of nanocrystalline aluminium.
K Kumar,H Van Swygenhoven,S Suresh (2003). Mechanical behavior of nanocrystalline metals and alloys11The Golden Jubilee Issue—Selected topics in Materials Science and Engineering: Past, Present and Future, edited by S. Suresh.
Brian James (2015). Powder Metallurgy Methods and Applications.
M Alymov,E Maltina,Y Stepanov (1998). Model of initial stage of ultrafine metal powder sintering.
S Akhtar,Hayoyue Khan,Laszlo Zhang,Takacs (2000). Mechanical response and modelling of fully compacted nanocrystalline iron and copper.
A Edelstein,R Cammarata (1996). In Nanomaterials: Synthesis, Properties and Applications.
Joao Fogagnolo,Elisa Ruiz-Navas,Maria Robert,Jose Torralba (2003). The Effects of Mechanical Alloying on the Compressibilty of Aluminum Matrix Composite Powder.
H Fecht,E Hellstern,Z Fu,W Johnson (1990). Nanocrystalline metals prepared by high-energy ball milling.
C Suryanarayana,E Ivanov,V Boldyrev (2001). The science and technology of mechanical alloying.
D Poquillon,V Baco-Carles,Ph Tailhades,E Andrieu (2002). Cold compaction of iron powders—relations between powder morphology and mechanical properties.
R German (1977). Strength Dependence on Porosity for P/M Compacts.
R Haynes (1970). Fatigue behavior of sintered metal and alloys.
T Honda (1983). Effect of sintering Temperature and Time on Fatigue Strength of Iron Compacts with Different Particle Sizes.
C Carlton,P Ferreira (2007). What is behind the inverse Hall–Petch effect in nanocrystalline materials?.
G Pranav,P Seong-Jin,M Randall (2007). Effect of Die Compaction pressure on Densification Behavior of Molybdenum Powders.
A Vagnon,O Lame,D Bouvard,M Michiel,D Bellet,G Kapelski (2006). Deformation of steel powder compacts during sintering: Correlation between macroscopic measurement and in situ microtomography analysis.
G Montasser Dewidar,Mahmoud Abdel-Jaber,Hussien Bakreya,Badry (2013). Effect of Processing Parameters and amount of additives on the Mechanical Properties and Wear Resistance of Copper-based Composite.
Sang Ho,Na,Si Kim,Young-Woo Lee,Dong Seong Sohn (2002). Effect of Ball-Mill Treatment on Powder Characteristics, Compaction and Sintering Behaviors of ex-AUC and ex-ADU UO Powder.
Camila Dos,Santos Torres,Lirio Schaffer (2010). Effect of High Energy Milling on the Microstructure and Properties of WC-Ni Composite.
Ravi Enneti,Adam Lusin,Sumeet Kumar,Randall German,Sundar Atre (2013). Effects of lubricant on green strength, compressibility and ejection of parts in die compaction process.
M Ward,J Billington (1979). Effect of Zinc Stearate on Apparent Density, Mixing and Compaction /Ejection of Iron Powder Compacts.
K Narasimhan (2001). Sintering of powder mixtures and the growth of ferrous powder metallurgy.
German (1996). Sintering Theory and Practice.
R German (1976). The sintering of 304L stainless steel powder.
Babak Farrokh,Akhtar Khan (2009). Grain size, strain rate, and temperature dependence of flow stress in ultra-fine grained and nanocrystalline Cu and Al: Synthesis, experiment, and constitutive modeling.
(1998). Powder Metal Technology and Applications.

Download References

Funding

No external funding was declared for this work.

Conflict of Interest

The authors declare no conflict of interest.

Ethical Approval

No ethics committee approval was required for this article type.

Data Availability

Not applicable for this article.

How to Cite This Article

Jamel H. Alexander, Olalekan R. Junaid, Tonya W. Stone. 2018. "Experimental Characterization of Milling, Compaction and Sintering of Nanocrystalline FC-0205 Copper Steel Powder". Global Journal of Research in Engineering - A : Mechanical & Mechanics GJRE-A Volume 18 (GJRE Volume 18 Issue A1).
