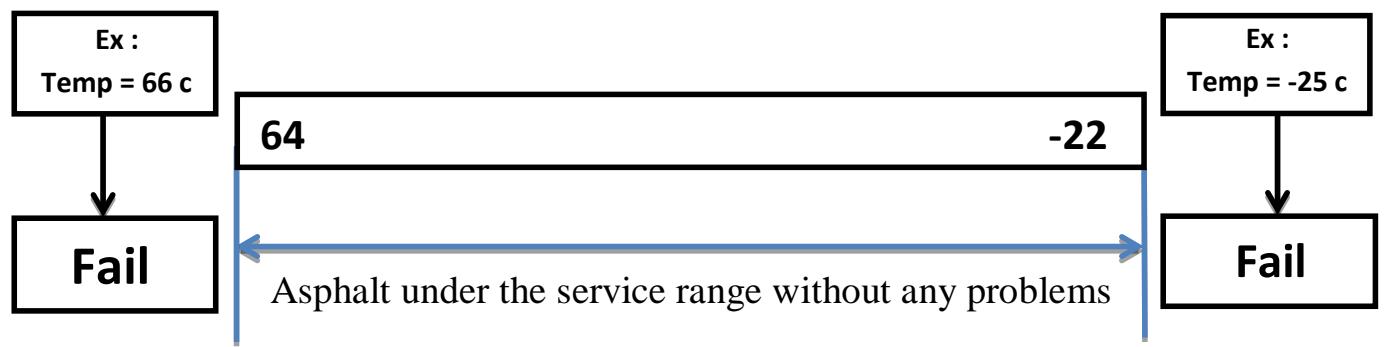

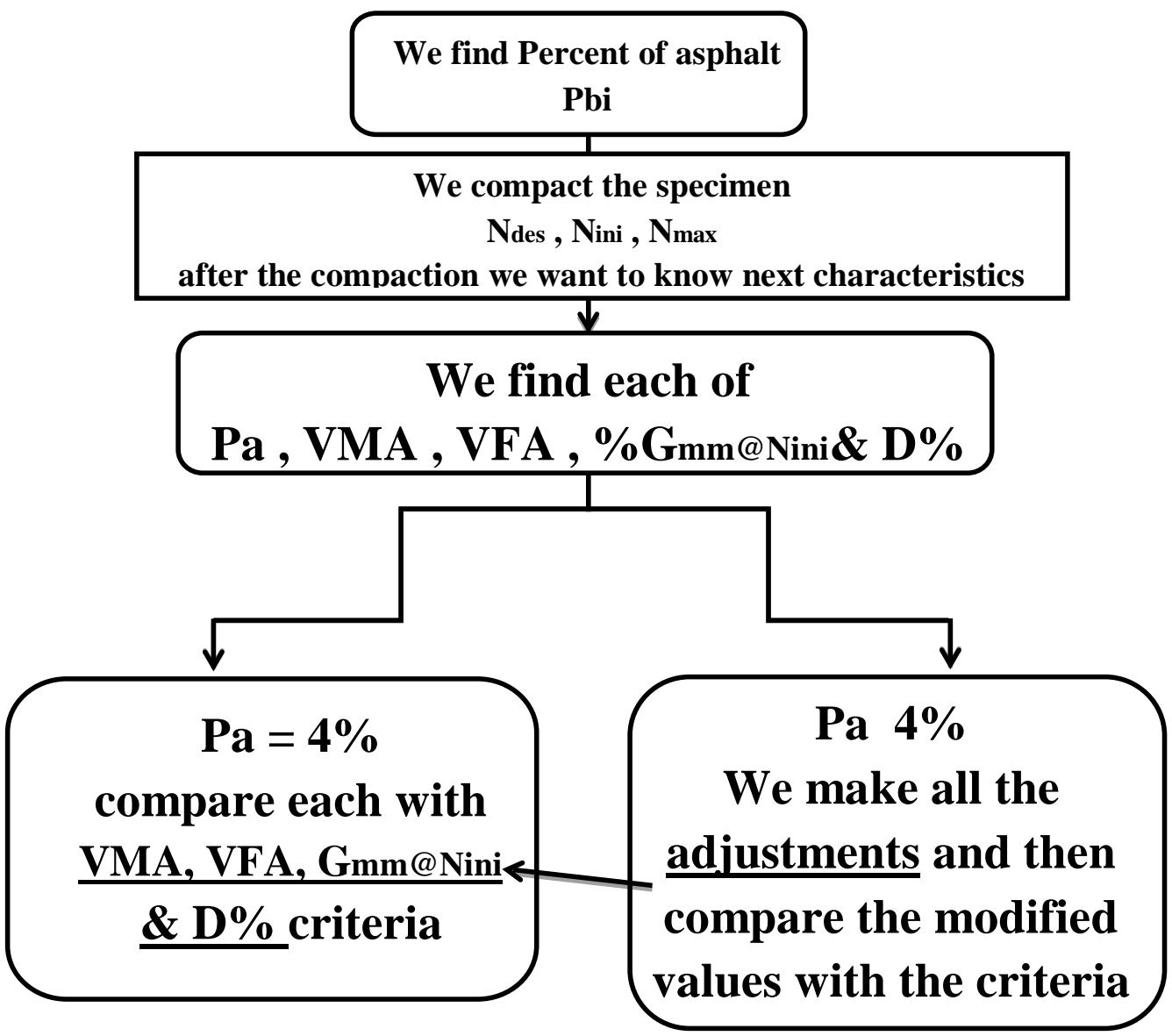

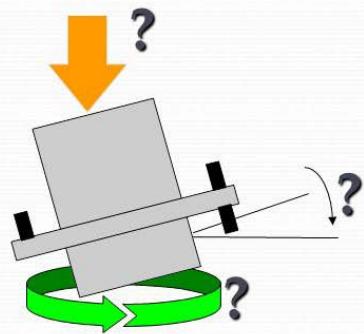

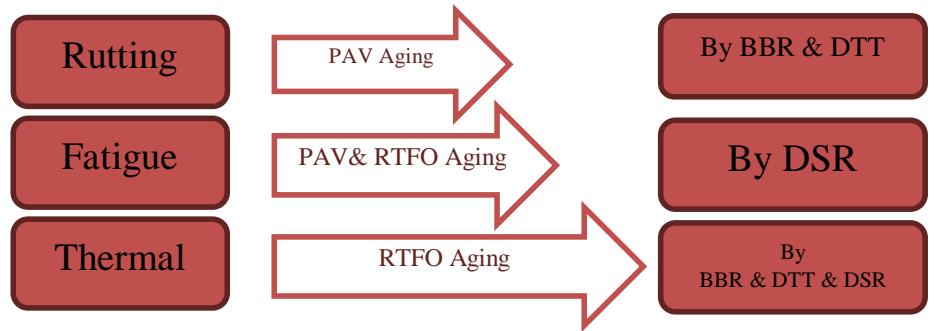

### INTRODUCTION The Superpave mix design approach primarily uses performance-based and performance-related features as the selection criteria for the mix design, which is a significant distinction from other design methods like the Marshal and Hveem methods. Here, we'll take a smooth and accurate look at how to use superpave method to create an asphalt mix and compare it to the minimum criteria using procedures including employing equations, displaying the results, modifying, and comparing. The objective of this mix design is to obtain a mixture of asphalt and aggregates that has the following characteristics: 1. Sufficient asphalt binder. 2. Sufficient voids in the mineral aggregates (VMA) and air voids. 3. Sufficient workability. 4. Performance characteristics over the service life of the pavement. Enter: Superpave system consists of the following parts: - Selection of Materials - Volumetric Trial Mixture Design - Selection of Final Mixture Design ## I. SELECTION OF MATERIALS ### a) Selection of Asphalt Binder The selection can be made in one of three ways: 1. The designer may select a binder based on the geographic location of the pavement. 2. The designer may determine the design pavement temperatures. 3. The designer may determine the design air temperatures which are then converted to design pavement temperatures. * Superpave system specifies asphalt on the basis of the climate and pavement temperatures is expected to serve. * Physical properties requirements remain the same, but the temperature of asphalt must attain the properties changes. Performance grade (PG) binders are graded such as PG 64-22. The first number 64, is often called the "high temperature grade". This means that the binder would possess adequate physical properties at least up to 64C. The second number -22, is often called the "low temperature grade" and means that the binder would possess adequate physical properties in pavements at least down to -22C.  Performance grade (PG) evaluation The Superpave system didn't consider the air temperature should be used as the design temperature; the system therefore uses this equation to convert the maximum air temperature to the maximum design pavement temperature. The low-pavement design temperature can be selected using this equation: $$ T _ {2 0 m m} = \left(T _ {a i r} - 0. 0 0 6 1 8 L a t ^ {2} + 0. 2 2 8 9 L a t + 4 2. 2\right) (0. 9 5 4 5) - 1 7. 7 8 $$ Where: $T_{20mm} =$ high-pavement design temperature at a depth of $20~\mathrm{mm}$ $T_{air}$ = seven day average high air temperature (C) Lat= the geographical latitude of the project location (degrees) The low-pavement design temperature can be selected using this equation: $$ T _ {p a v} = 1. 5 6 + 0. 7 2 T _ {a i r} - 0. 0 0 4 L a t ^ {2} + 6. 2 6 l o g _ {1 0} (H + 2 5) - Z (4. 4 + 0. 5 2 \sigma_ {a i r} ^ {2}) ^ {0. 5} $$ Where: $T_{pav} =$ low AC-pavement temperature below surface (C) $T_{air} = \text{low air temperature (C)}$ Lat= latitude of the project location (degrees) $H =$ depth of pavement surface mm[^150] $\sigma_{air} =$ standard deviation of the mean low air temperature (C) $Z = 2.055$ for 98 percent reliability Ex: Determining a Suitable Binder Grade Using High and Low Air Temperatures. The latitude at a location where a high-speed rural road is to be located is $41^{\circ}$. The seven-day average high air temperature is $50^{\circ}\mathrm{C}$ and the low air temperature is $-20^{\circ}\mathrm{C}$. The standard deviation for both the high and low temperatures is $\pm 1^{\circ}\mathrm{C}$. Determine a suitable binder that could be used for the pavement of this highway if the depth of the pavement surface is $155 \, \text{mm}$ and the expected ESAL is $9 \times 10^6$. #### 1. Determine the high-pavement temperature at a depth of 20 mm $$ T _ {2 0 m m} = \left(T _ {a i r} - 0. 0 0 6 1 8 L a t ^ {2} + 0. 2 2 8 9 L a t + 4 2. 2\right) (0. 9 5 4 5) - 1 7. 7 8 $$ $$ T_{20mm} = (50 - 0.00618*41^{2} + 0.2289*41 + 42.2)(0.9545) - 17.78 $$ $$ T _ {2 0 m m} = 6 9.2 7 ^ {\circ} \mathrm{C} $$ #### 2. Determine low-AC-pavement temperature $$ T _ {p a v} = 1. 5 6 + 0. 7 2 T _ {a i r} - 0. 0 0 4 L a t ^ {2} + 6. 2 6 l o g _ {1 0} (H + 2 5) - Z (4. 4 + 0. 5 2 \sigma_ {a i r} ^ {2}) ^ {0. 5} $$ $$ T_{pav} = 1.56 + 0.72(-20) - 0.004*41^{2} + 6.26\log_{10}(155+25) - 2.055(4.4 + 0.52 * 1^{2})^{0.5} $$ $$ T _ {p a v} = - 1 0 ^ {\mathrm {o}} \mathrm {C} $$ $$ P G (- 1 0, 6 9) $$ Tests on Binder Asphalt (Physical Properties) Physical properties are also measured on binders that have been aged in 1. Rolling thin film oven (RTFO) (Long Term Aging) - to simulate oxidative hardening that occurs during hot mixing and placing. 2. Pressure aging vessel (PAV) (Short Term Aging) - to simulate the severe aging that occurs after the binder has served many years in a pavement. Binder physical properties are measured using four devices #### 1. Dynamic Shear Rheometer (DSR) is used to measures the complex shear modulus and phase rotational angle. * to control asphalt stiffness * prevent Fatigue cracking #### 2. The Rotational Viscometer (RV) to characterize the stiffness of the asphalt at 135 C, where it acts entirely as a viscous fluid. * To know that asphalt have a viscosity of less than 3 Pa-s. This ensures that the asphalt can be pumped and otherwise handled during HMA manufacturing. #### 3. The Bending Beam Rheometer (BBR) to characterize the low temperature stiffness properties of binders. * To minimize low temperature cracking due to load. #### 4. Direct Tension Test (DTT) to Know binders (Asphalt) are sufficiently ductile at low temperatures * Resistance low temperature cracking due to Climate. * These are examples of problems and how they are tested to prevent them from occurring.  ### b) Selection of Mineral Aggregate The aggregate characteristics that generally were accepted by the experts for good performance of the hot mix asphalt include: 1. Coarse Aggregates Angularity (CAA) 2. Fine Aggregates Angularity (FAA) 3. A flat and elongated particle 4. The clay content #### 1. Coarse Aggregates Angularity (CAA) The percent of coarse aggregates larger than $4.75\mathrm{mm}$ with one or more fractured faces. Table 18.14: Coarse Aggregate Angularity Criteria Minimum Value Given Depth from Surface Traffic, Million ESALs <100mm >100mm $< {0.3}$ <1 <3 <10 <30 <100 >100 55/- 65/- 75/- 85/80 95/90 100/100 100/100 -/- -- 50/- 60/- 80/75 95/90 00/100 Note: "85/80" indicates that $85\%$ of the coarse aggregate has one or more fractured faces and $80\%$ two or more fractured faces. When CAA Increase, Performance Increase Ex: ESAL = 40*10^6 and depth from surface = 12 cm are 82% acceptable? SOL: Depth from surface $= 12 \mathrm{~cm} = 120 \mathrm{~mm}$ ESAL $= 40 < 100$ $82\% < 95 / 90\%$ Not Acceptable #### 2. Fine Aggregates Angularity (FAA) The percent of air voids in loosely compacted aggregates smaller than $2.36 \, \text{mm}$. Table 18.15: Fine Aggregate Angularity Criteria Minimum Value Given Percent Air Voids in Loosely Compacted Fine Aggregates Smaller than 2.36 mm Traffic, Million ESALs Depth from Surface $< {0.3}$ <1 <3 <10 <30 <100 $\geq 100$ <100mm # 40 40 45 45 45 45 一 40 40 40 45 45 When FAA Increase, Performance Increase Ex: ESAL = 20*10^6 and depth from surface = 7 cm percent of air voids in fine aggregates = 40% the FAA acceptable? SOL: Depth from surface $= 7 \mathrm{~cm} = 70 \mathrm{~mm}$ $\longrightarrow$ ESAL $= 20 < 30$ 40% < 45% Not Acceptable #### 3. The Clay Content Is the percentage of clayey material in the portion of aggregate passing through the 4.75 mm sieve.  ### 3. The Clay Content Is the percentage of clayey material in the portion of aggregate passing through the 4.75 mm sieve.  # 4. A Flat and Elongated Particle Maximum dimension five times greater than its minimum dimension. Maximum Value Given Traffic, Million ESALs  Table 18.16: Thin and Elongated Particles Criteria When ElongatedIncrease, Performance Decrease $\mathrm{Ex}: \mathrm{ESAL} = 4^{*} 10^{^{\wedge}} 6, \text {elongated particles} = 11\%$ Acceptable or Not? SOL: $$ \mathrm {E S A L} = 4 < 1 0 $$ $$ 11 \% > 10 \% $$ Not Acceptable Summary - Seeking to achieve HMA with a high degree of internal friction and thus, high shear strength for rutting resistance. - Limiting elongated pieces ensures that the HMA will not be as susceptible to aggregate breakage during handling and construction and under traffic. - Limiting the amount of clay in aggregate, the adhesive bond between asphalt binder and aggregate. ### c) Gradation The distribution particle sizes for a given blend of aggregate mixture is known as the design aggregate structure. The advantage of granular grading of aggregates is to obtain the highest density of aggregates and the lowest voids #### 1-The nominal maximum size Is one sieve larger than the first sieve that retains more than 10 percent of the aggregate. #### 2- Maximum size Is defined as one sieve larger than the nominal maximum size. EX: Find Maximum nominal size & Maximum Size for These Sieve <table><tr><td>Sieve (mm)</td><td>Passing (+)</td><td>Retain (-)</td></tr><tr><td>50</td><td>100%</td><td>0%</td></tr><tr><td>37.5</td><td>100%</td><td>0%</td></tr><tr><td>25</td><td>95%</td><td>5%</td></tr><tr><td>19</td><td>92%</td><td>8%</td></tr><tr><td>12.5</td><td>89%</td><td>11%</td></tr><tr><td>9.5</td><td>85%</td><td>15%</td></tr><tr><td>4.75</td><td>70%</td><td>30%</td></tr></table> Maximum Nominal Size Maximum Size  Control point: upper and lower limits where superbave gradation must pass through them Restricted Zone: Control Fine Minerals Max density Line:to Know density Of Mix ## II. VOLUMETRIC TRIAL MIXTURE DESIGN ### a) Determining Trial Percentage of Asphalt Binder Step 1 Compute the bulk and apparent specific gravities of the total aggregates in the trial aggregate mix using $$ \rightarrow G _ {\mathrm {s b}} = \frac {P _ {\mathrm {c a}} + P _ {\mathrm {f a}} + P _ {\mathrm {m f}}}{\frac {P _ {\mathrm {c a}}}{G _ {\mathrm {b c a}}} + \frac {P _ {\mathrm {f a}}}{G _ {\mathrm {b f a}}} + \frac {P _ {\mathrm {m f}}}{G _ {\mathrm {b m f}}}} $$ $$ \rightarrow G _ {\mathrm{a s b}} = \frac{P _ {\mathrm{c a}} + P _ {\mathrm{f a}} + P _ {\mathrm{m f}}}{\frac{P _ {\mathrm{c a}}}{G _ {\mathrm{a c a}}} + \frac{P _ {\mathrm{f a}}}{G _ {\mathrm{a f a}}} + \frac{P _ {\mathrm{m f}}}{G _ {\mathrm{a m f}}}} $$ Step 2 Compute the effective specific gravity of the total aggregate in the trialgradation $$ G _ {\mathrm {s e}} = G _ {\mathrm {s b}} + 0. 8 \left(G _ {\mathrm {a s b}} - G _ {\mathrm {s b}}\right) $$ #### Step 3 The amount of asphalt binder absorbed by the aggregates $$ V _ {\mathrm {b a}} = \frac {P _ {\mathrm {s}} (1 - V _ {\mathrm {a}})}{\frac {P _ {\mathrm {b}}}{G _ {\mathrm {b}}} + \frac {P _ {\mathrm {s}}}{G _ {\mathrm {s e}}}} \left[ \frac {1}{G _ {\mathrm {s b}}} - \frac {1}{G _ {\mathrm {s e}}} \right. $$ Where: Vba: volume of absorbed binder of mix $\mathbf{Pb}$:percent of binder $= 0.05$ Ps: percent of aggregate $= 0.95$ Gb:specific gravity of binder $= 1.02$ $\mathbf{V}\mathbf{a} = \mathbf{P}\mathbf{a} =$ volume of air voids $= 0.04$ #### Step 4 The percent of effective asphalt binder by volume $$ \longrightarrow V_{\mathrm{be}} = 0.176 - (0.0675)\log\left(S_{\mathrm{n}}\right) $$ Where: Vbe: the volume of effective binder content Sn: the nominal maximum sieve size (mm) Step 5 A trial percentage of asphalt binder $$ P_{\mathrm{bi}} = \frac{G_{\mathrm{b}}(V_{\mathrm{be}} + V_{\mathrm{ba}})}{(G_{\mathrm{b}}(V_{\mathrm{be}} + V_{\mathrm{ba}})) + W_{\mathrm{s}}} \times 100 $$  $$ W _ {\mathrm {s}} = \frac {P _ {\mathrm {s}} (1 - V _ {\mathrm {a}})}{\frac {P _ {\mathrm {b}}}{G _ {\mathrm {b}}} + \frac {P _ {\mathrm {s}}}{G _ {\mathrm {s e}}}} $$ ## Where: Pbi: initial trial percent of binder by mass of mix Gb:specific gravity of binder assumed $= 1.02$ Ws:mass of aggregate The table below shows properties of three trial aggregate blends that are to be evaluated so as to determine their suitability for use in a Superpave mix. If the nominal maximum sieve of each aggregate blend is $19\mathrm{mm}$, determine the initial trial asphalt content for each of the blends. <table><tr><td>Property</td><td>Trial blend 1</td><td>Trial blend 2</td><td>Trial blend 3</td></tr><tr><td>Gsb</td><td>2.698</td><td>2.696</td><td>2.711</td></tr><tr><td>Gse</td><td>2.765</td><td>2.766</td><td>2.764</td></tr></table> Since $G_{\mathrm{sb}}$ and $G_{\mathrm{se}}$ are given, the trial percentage of asphalt binder can be found using Equations 18.17, 18.18, and 18.19 and the assumed values as indicated in the textbook: $$ \mathrm {P _ {b}} = 0. 0 5 $$ $$ \mathrm {P} _ {\mathrm {s}} = 0. 9 5 $$ $$ G _ {b} = 1. 0 2 $$ $$ \mathrm {V} _ {\mathrm {a}} = 0. 0 4 $$ For trial blend 1: Use Equation 18.17, $$ V_{ba} = \frac{P_{s}(1-V_{a})}{\left(\frac{P_{b}}{G_{b}} + \frac{P_{s}}{G_{se}}\right)} \left[ \frac{1}{G_{sb}} - \frac{1}{G_{se}} \right] = \frac{0.95(1-0.04)}{\left(\frac{0.05}{1.02} + \frac{0.95}{2.765}\right)} \left[ \frac{1}{2.698} - \frac{1}{2.765} \right] = 0.0209 $$ Use Equation 18.18. $$ V _ {b e} = 0. 1 7 6 - 0. 0 6 7 5 \log S _ {\mathrm {n}} = 0. 1 7 6 - 0. 0 6 7 \log (1 9) = 0. 0 9 0 3 $$ Use Equation 18.20. $$ W _ {s} = \frac {P _ {s} (1 - V _ {a})}{\frac {P _ {b}}{G _ {b}} + \frac {P _ {s}}{G _ {s e}}} = \frac {0 . 9 5 (1 - 0 . 0 4)}{\left(\frac {0 . 0 5}{1 . 0 2} + \frac {0 . 9 5}{2 . 7 6 5}\right)} = 2. 3 2 3 $$ $$ P _ {b i} = 1 0 0 \frac {G _ {b} \left(V _ {b e} + V _ {b a}\right)}{\left(G _ {b} \left(V _ {b e} + V _ {b a}\right)\right) + W _ {s}} = 1 0 0 \frac {1 . 0 2 (0 . 0 9 0 + 0 . 0 2 1)}{1 . 0 2 (0 . 0 9 0 + 0 . 0 2 1) + 2 . 3 2 3} = 0. 0 4 6 6 $$ For trial blend 2: Use Equation 18.17, $$ V_{ba} = \frac{P_{s}(1 - V_{a})}{\left(\frac{P_{b}}{G_{b}} + \frac{P_{s}}{G_{se}}\right)} \left[ \frac{1}{G_{sb}} - \frac{1}{G_{se}} \right] = \frac{0.95(1 - 0.04)}{\left(\frac{0.05}{1.02} + \frac{0.95}{2.766}\right)} \left[ \frac{1}{2.696} - \frac{1}{2.766} \right] = 0.0218 $$ Use Equation 18.18, $$ V _ {b e} = 0. 1 7 6 - 0. 0 6 7 5 \log S _ {\mathrm {n}} = 0. 1 7 6 - 0. 0 6 7 \log (1 9) = 0. 0 9 0 3 $$ Use Equation 18.20, $$ W_{s} = \frac{P_{s}(1-V_{a})}{\frac{P_{b}}{G_{b}} + \frac{P_{s}}{G_{se}}} = \frac{0.95(1-0.04)}{\left(\frac{0.05}{1.02} + \frac{0.95}{2.766}\right)} = 2.324 $$ Use Equation 18.19, $$ P _ {b i} = 1 0 0 \frac {G _ {b} \left(V _ {b e} + V _ {b a}\right)}{\left(G _ {b} \left(V _ {b e} + V _ {b a}\right)\right) + W _ {s}} = 1 0 0 \frac {1 . 0 2 (0 . 0 9 0 + 0 . 0 2 2)}{1 . 0 2 (0 . 0 9 0 + 0 . 0 2 2) + 2 . 3 2 4} = 0. 0 4 6 9 $$ #### For trial blend 3: Use Equation 18.17, $$ V_{ba} = \frac{P_{s}(1-V_{a})}{\left(\frac{P_{b}}{G_{b}} + \frac{P_{s}}{G_{se}}\right)} \left[ \frac{1}{G_{sb}} - \frac{1}{G_{se}} \right] = \frac{0.95(1-0.04)}{\left(\frac{0.05}{1.02} + \frac{0.95}{2.764}\right)} \left[ \frac{1}{2.711} - \frac{1}{2.764} \right] = 0.0164 $$ Use Equation 18.18, $$ V _ {b e} = 0. 1 7 6 - 0. 0 6 7 5 \log S _ {\mathrm {n}} = 0. 1 7 6 - 0. 0 6 7 \log (1 9) = 0. 0 9 0 3 $$ Use Equation 18.20, $$ W _ {s} = \frac {P _ {s} (1 - V _ {a})}{\frac {P _ {b}}{G _ {b}} + \frac {P _ {s}}{G _ {s e}}} = \frac {0 . 9 5 (1 - 0 . 0 4)}{\left(\frac {0 . 0 5}{1 . 0 2} + \frac {0 . 9 5}{2 . 7 6 4}\right)} = 2. 3 2 2 $$ $$ P _ {b i} = 1 0 0 \frac {G _ {b} \left(V _ {b e} + V _ {b a}\right)}{\left(G _ {b} \left(V _ {b e} + V _ {b a}\right)\right) + W _ {s}} = 1 0 0 \frac {1 . 0 2 (0 . 0 9 0 + 0 . 0 1 6)}{1 . 0 2 (0 . 0 9 0 + 0 . 0 1 6) + 2 . 3 2 2} = 0. 0 6 3 4 $$ ### b) Evaluating Trial Mix Design To know if the percentage of asphalt that we got is suitable after the compaction * By Using Superpave Gyratory Compactor (SGC) 1. Number of gyrations $(N_{\text{design}})$ to compute level of compaction. The $N_{\mathrm{design}}$ depends on the average design high air temperature and the design ESAL. 2. Maximum number of gyrations, $N_{\text{max}}$, is used to compact the test specimens. 3. Initial number of gyrations, $N_{\mathrm{ini}}$, is used to estimate the compactibility of the mixture. $$ \log N_{max} = 1.10\log N_{\mathrm{des}} $$ $$ \operatorname{Log} N _ {\mathrm{i n i}} = 0.4 5 \operatorname{Log} N _ {\mathrm{d e s}} $$ Ndesign To know compaction level Nmax To compact the specimen Ninitial To know specimen's bearing capacity ## Superpave Gyratory Compactor Basis - Texas equipment - French operational characteristics - Up to ${37.5}\mathrm{\;{mm}}$ nominal size - Height recording - Must control pressure (600 KPa), angle (1.25 degrees), and number of gyrations (depends on traffic)  Ex: When Design ESALs $= 10 - 30$ (millions) and the Average design high air temperature $= 41$ to $42\mathrm{C}$ given $\mathrm{N}_{\mathrm{design}} = 124$ Find $\mathbf{N}_{\mathrm{max}}$ & Compactibility? $\mathrm{LogN}_{\mathrm{max}} = 1.1\mathrm{LogN}_{\mathrm{design}}$ or $\mathrm{N}_{\mathrm{max}} = (\mathrm{N}_{\mathrm{design}})^{\wedge}1.1$ $$ \mathrm{N}_{max} = (128)^{\wedge}1.1 = 208 $$ $\mathrm{N_{initial} = (N_{design})^{\wedge}0.45}$ $$ \mathrm{N} _ {\text{initial}} = (1 2 8) ^ {\wedge} 0.4 5 = 9 $$ - Volumetric Calculation at the Ndesigngyration Know the characteristics of the sampleafter compaction. 1- percent air voids at Ndesign (Pa or Va) $$ P_{\mathrm{a}} = 100\left(\frac{G_{\mathrm{mm}} - G_{\mathrm{mb}}}{G_{\mathrm{mm}}}\right) = 100 - \% \mathrm{Gmm} @ \mathrm{N}_{\mathrm{design}} $$ Pa:air voids at Ndes percent of total volume Gmm: maximum theoretical specific gravity at Ndes Gmb: bulk specific gravity of the compacted mixture 2- voids in mineral aggregate (VMA) $$ VMA = 100 - \left(\frac{G_{\mathrm{mb}} P_{\mathrm{s}}}{G_{\mathrm{sb}}}\right) \xrightarrow{\text{Gmb} = \%\text{Gmm} @ \text{Ndes} * \text{Gmm}} $$ VMA: voids in mineral aggregate, percent in bulk volume Gmb: bulk specific gravity of the compacted mixture Ps: aggregate content cm3/cm3, by total mass of mixture Gsb: bulk specific gravity of aggregates in the paving mixture ### 3- Void filled Asphalt (VFA) $$ VFA = 100 \left(\frac{VMA - P_a}{VMA}\right) $$ 4- $\% \mathrm{Gmm} = (\mathrm{Gmb} / \mathrm{Gmm}) * 100\%$ 7- Dust% = P0.75/Pbe $$ \begin{array}{l} 5 - P _ {b a} = 1 0 0 * \frac {G _ {s e} - G _ {s b}}{G _ {s e} G _ {s b}} * G _ {b} \\6 - P _ {b e} = P _ {b} - \frac {P _ {b a}}{1 0 0} * P _ {s} \\\end{array} $$  VMA equation in the past paper #### Correction Equation 1) $\mathrm{P_b, estimated = P_{bi} - 0.4(4 - Pa)}$ - Pb,estimated: estimated asphalt content. - Pbi: initial (trial) asphalt content, percent by mass of mixture. - Pa: percent air voids at Ndes (trial) $\neq 4\%$ 2) VMAestimated = VMAinitial + C (4 - Pa) #### 3)  $$ V F A _ {\text{estimated}} = 1 0 0 \frac{V M A _ {\text{estimated}} - 4 . 0}{V M A _ {\text{estimated}}} $$ #### 4) The effective binder content after correction $(\mathrm{P_{be}})$ $$ P _ {b a} = 1 0 0 * \frac {G _ {s e} - G _ {s b}}{G _ {s e} G _ {s b}} * G _ {b} $$ $$ P _ {b e} = P _ {b, e s t i m a t e d} - \frac {P _ {b a}}{1 0 0} * P _ {s} $$ #### 5) Dust Percentage $$ D P = \frac {P _ {0 . 7 5}}{P _ {\mathrm {b e}}} $$ Percent of aggregate content passing the 0.075-mm sieve 6) Gmm,estimatedat Nmax= Gmm,trialat Nmax- $(4 - \mathrm{Pa})$ 7) Gmm,estimatedat Nini = Gmm,trialat Nini - (4 - Pa)  Table 18.20: Voids in Mineral Aggregate Criteria <table><tr><td>Nominal Maximum Size (mm)</td><td>Minimum Voids in Mineral Aggregate (%)</td></tr><tr><td>9.5</td><td>15.0</td></tr><tr><td>12.5</td><td>14.0</td></tr><tr><td>19.0</td><td>13.0</td></tr><tr><td>25.0</td><td>12.0</td></tr><tr><td>37.5</td><td>11.0</td></tr><tr><td>50.0</td><td>10.5</td></tr></table> Table 18.22: VFA Criteria <table><tr><td>Traffic, Million ESALs</td><td>Design VFA, Percent</td></tr><tr><td>&lt; 0.3</td><td>70-80</td></tr><tr><td>&lt; 1</td><td>65-78</td></tr><tr><td>&lt; 3</td><td>65-78</td></tr><tr><td>&lt; 10</td><td>65-75</td></tr><tr><td>&lt; 30</td><td>65-75</td></tr><tr><td>&lt; 100</td><td>65-75</td></tr></table> $$ 0.6 \% < \mathrm {Dust} \% < 1.2 \% $$ $$ Gmm at N_{initial} \leq 89\% $$ $$ Gmm at \$N_{Max} \leq 98\%\$ $$ Find which blend satisfy to criteria for volumetric properties in trial mix, use result in this table to choose. <table><tr><td>blend</td><td>1</td><td>2</td><td>3</td></tr><tr><td>Trial binder</td><td>4.4%</td><td>4.4%</td><td>4.4%</td></tr><tr><td>% Gmm at Ndes</td><td>96.2%</td><td>95.7%</td><td>95.2%</td></tr><tr><td>% Gmm at Nini</td><td>87.1%</td><td>85.6%</td><td>86.3%</td></tr><tr><td>% Pa</td><td>3.8%</td><td>4.3%</td><td>4.8%</td></tr><tr><td>%VMA</td><td>12.7%</td><td>13%</td><td>13.5%</td></tr><tr><td>%VFA</td><td>68.5%</td><td>69.2%</td><td>70.1%</td></tr><tr><td>%Dust</td><td>0.9%</td><td>0.8%</td><td>0.9%</td></tr></table> First, we look at the percentage of air voids Pafor each mixture. We note that each mixture needs to adjust the values to obtain percentage of air void $4\%$, after that we compare the specifications for each ratio. #### Blend 1: - 1- $P_{b,estimated} = P_{bi} - 0.4(4 - P_a) = 4.4 - 0.4(4 - 3.8) = 4.32\%$ - Old $\mathrm{Pa}\%$ not modified - 2- $VMA_{estimated}$ = $VMA_{ini} + C(4 - P_a) = 12.7 + 0.1(4 - 3.8) = 12.72\%$ - 3- VFA estimated = 100 * $\frac{VMA_{estimated} - 4}{VMA_{estimated}} = \frac{12.72 - 4}{12.72} = 68.55\%$ - 4- $G_{mm,estimated}$ at $N_{ini} = G_{mm} - (4 - P_a) = 87.1 - (4 - 3.8) = 86.9$ $C = 0.1$ because $P_{a}< 4\%$ #### Blend 2: - 1- $P_{b,estimated} = P_{bi} - 0.4(4 - P_a) = 4.4 - 0.4(4 - 4.8) = 4.72\%$ - 2- $VMA_{estimated}$ = $VMA_{ini} + C(4 - P_a) = 13.5 + 0.2(4 - 4.8) = 13.34\%$ - 3- VFA estimated = 100 * $\frac{VMA_{estimated} - 4}{VMA_{estimated}} = \frac{13.34 - 4}{13.34} = 70\%$ - 4- $G_{mm,estimated}$ at $N_{ini} = G_{mm} - (4 - P_a) = 86.4 - (4 - 4.8) = 87.2$ $C = 0.2$ because $P_{a} > 4\%$ #### Blend 3: - 1- $P_{b,estimated}$ = $P_{bi} - 0.4(4 - P_a) = 4.4 - 0.4(4 - 4.3) = 4.52\%$ - 2- $VMA_{estimated}$ = $VMA_{ini} + C(4 - P_a) = 13 + 0.2(4 - 4.3) = 12.94\%$ - 3- $VFA_{estimated}$ = 100 * $\frac{VMA_{estimated} - 4}{VMA_{estimated}} = \frac{12.94 - 4}{12.94} = 69.1\%$ - 4- $G_{mm,estimated}$ at $N_{ini} = G_{mm} - (4 - P_a) = 85.6 - (4 - 4.3) = 85.9$ <table><tr><td colspan="5">Criteria to compare&gt;&gt;Given</td></tr><tr><td>Gmm at Nini&lt; 89%</td><td>Pa=4%</td><td>VMA≥13%</td><td>65% &lt;VFA &lt;75%</td><td>0.6%&lt;Dust&lt;1.2%</td></tr></table> #### 1- All Blend $P_{a} = 4\%$ 2- Blend 1 VMA = 12.72% < 13% × Blend 2 VMA = 12.94% < 13% × Blend 3 VMA = 13.34% > 13% ✓ - 3- All Blend VFA between $65 - 75\%$ - 4- All Blend $G_{mm}$ less than $89\%$ [^150]: mm diameter _(p.13)_
