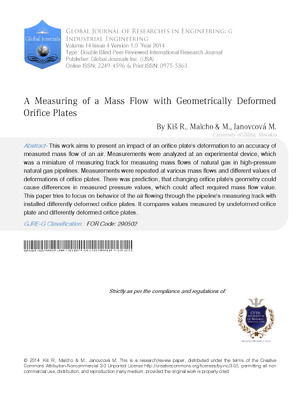

A Measuring of a Mass Flow with Geometrically Deformed Orifice Plates
This work aims to present an impact of an orifice plate’s deformation to an accuracy of measured mass flow of an air. Measurements were analyzed at an experimental device, which was a miniature of measuring track for measuring mass flows of natural gas in high-pressure natural gas pipelines. Measurements were repeated at various mass flows and different values of deformations of orifice plates. There was prediction, that changing orifice plate’s geometry could cause differences in measured pressure values, which could affect required mass flow value. This paper tries to focus on behavior of the air flowing through the pipeline’s measuring track with installed differently deformed orifice plates. It compares values measured by undeformed orifice plate and differently deformed orifice plates.
