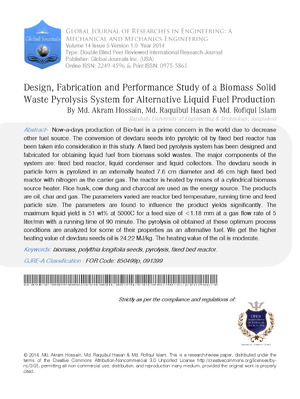

Design, Fabrication and Performance Study of a Biomass Solid Waste Pyrolysis System for Alternative Liquid Fuel Production
Now-a-days production of Bio-fuel is a prime concern in the world due to decrease other fuel source. The conversion of devdaru seeds into pyrolytic oil by fixed bed reactor has been taken into consideration in this study. A fixed bed pyrolysis system has been designed and fabricated for obtaining liquid fuel from biomass solid wastes. The major components of the system are: fixed bed reactor, liquid condenser and liquid collectors. The devdaru seeds in particle form is pyrolized in an externally heated7.6 cm diameter and 46 cm high fixed bed reactor with nitrogen as the carrier gas. The reactor is heated by means of a cylindrical biomass source heater. Rice husk, cow dung and charcoal are used as the energy source. The products are oil, char and gas. The parameters varied are reactor bed temperature, running time and feed particle size. The parameters are found to influence the product yields significantly. The maximum liquid yield is 51 wt% at 5000C for a feed size of <1.18 mm at a gas flow rate of 5 liter/min with a running time of 90 minute. The pyrolysis oil obtained at these optimum process conditions are analyzed for some of their properties as an alternative fuel. We get the higher heating value of devdaru seeds oil is 24.22 MJ/kg. The heating value of the oil is moderate.
