Evaluation of Seismic Performance Focusing on Increasing Response of Lead Rubber Bearing (LRB) and Over Strength of RC Pier During Earthquake

Park Kyeonghoon; Naito Nobuyuki; Mazda Taiji; Uno Hiroshige; Kawakami Masahide

I. INTRODUCTION

The factors for changing the response of LRB are shown in Tab. 1. The properties of LRB vary by several factors. The actual behavior of earthquakes may be different from the expected behavior of the structural design [1]. In Tab. 1, the length of the arrow indicates the change in response. The earthquake reduces the stiffness of laminated rubber bearings and causes large shear deformation. Eventually, fracture deformation occurs beyond the allowable shear deformation [2]. However, since the hardening occurs in the high shear deformation region of the laminated rubber bearing, the resistance force is greater than when it is designed without hardening [3]. The actual displacement of the laminated rubber bearing of the structure is suppressed than the designed displacement, and it has a result that it is difficult to reach the fracture deformation. Besides, the pier has over strength, and the yield load becomes larger than the expected design. Therefore, the resistance of the pier during an earthquake is strengthened, but a large inertia force acts on the laminated rubber bearing. Moreover, a factor that increases the shear deformation of the laminated rubber bearing during an earthquake is involved statically indeterminate force due to the expansion and contraction of the girder caused by temperature changes. This paper proposes that the elongation of girders caused by expansion and contraction cannot ignore the effects of statically indeterminate force on seismic performance $[4,5]$ . Also, the temperature dependency of the laminated rubber bearing at low temperatures is large $[6,7]$ . In continuous girder bridges, the performance of laminated rubber bearings installed in each pier differs from the design values by dispersion of inertia forces, and the inertia forces acting on specific bearings, and substructures change. For this reason, it is preferred that the laminated rubber bearing applied to the continuous girder bridges is manufactured in the same manufacturing process as possible so that there is little difference in performance among products $[8]$ . On the other hand, because the ground conditions are different from the design expectations, there is a possibility that the seismic performance of the bridge may be lost due to changes in the characteristics of the foundation. This paper focuses on bridges with LRB that increase shear strain during an earthquake, and various cases were analyzed for this examination bridge. The details can be divided into the effect of reducing the deformation of hardening due to the stiffness reduction of LRB during an earthquake, the effect of over strength RC column type pier on the response of LRB and the effect of LRB stiffness increase or decrease in continuous girder bridge. Besides, temperature change, which is a factor in which shear strain of LRB increases, has already been shown in past papers $[4,5]$ . Also, since the quantified amount of change in the foundation is uncertain and the impact of the change in the condition of the foundation is not expected to be significant when the pier is plasticized, it is not considered in this paper.

Table 1: Factor for variation of response for LRB

Factor for variation of response		Contents of factor	Response of LRB Less Much	Note
Durability	Compressive fatigue durability	Ability variation by fatigue durability due to repeatedly compression		Evaluation by NEXCO
Durability	Shear fatigue durability	Ability variation by fatigue durability due to repeatedly shear force
Stability	Periodic dependency	Ability variation depending on input period of seismic force
	Temperature dependency	Ability variation due to ambient temperature
	Bearing dependency	Ability variation due to pressure under vertical load
Hardening		Characteristic of rubber by hardening in high strain region		Constantly appearance
Overstrength of pier		Enhancement of yielding stiffness and yielding load of pier due to execution, aging etc.
Non-static stability force due to temperature change		Influence to initial load during earthquake due to non - static stability force
Aging deterioration of rubber		Hardening of rubber by aging
Allotment of inertia force on continuous girder		Variation of distribution of inertia force caused by bearing, substructure etc.
Characteristics of foundation ground		Ground property exceeding assumptions

Table 2: Coefficient on calculation of Cr (

$\gamma$ ) for LRB

Application condition		$a_0$	$a_1$	$a_2$
$\gamma \leqq 1.75$	Common	1	-	-
$1.75 < \gamma \leqq 2.50$	G8	0.905	0.028	0.015
	G10	1.046	-0.161	0.077
	G12	1.049	-0.203	0.100

II. CONSIDERATION OF FACTORS FOR ANALYSIS

a) Decrease the stiffness of LRB

In a bridge equipped with laminated rubber bearings such as isolating bearing, there is a possibility that stiffness may be reduced due to the performance differences, dependency, and durability for each product $[9,10]$ . As a result, the strain of laminated rubber bearings during an earthquake is larger than expected in structural design. The East, Central, and West Nippon Expressway Co., Ltd. defined the limit value of the performance variation due to these factors as $R_{k+}$ and $R_{k-}$ , and sets limits of +0.30 and -0.15 respectively $[11]$ . This value was based on the Standard Specifications for Structure Construction Management (Jul.2012) and was calculated using the formula in Appendix 1. This paper studied the case where the

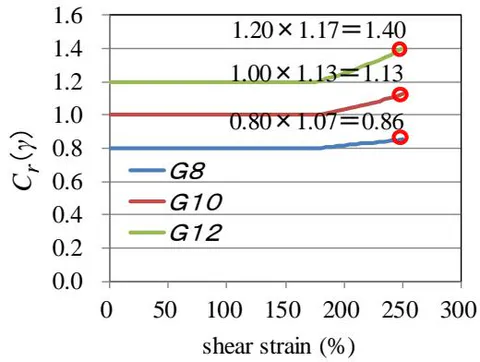

Fig. 1: Cr (
\gamma ) for LRB shear modulus of LRB decreased by 15% as the maximum value and increased by 30% as the minimum value of the expected stiffness in LRB. In the model of piers that assumed continuous girder bridges, the effect of dispersion was also analyzed by combining the case where the stiffness of LRB between piers was increased by 30% and the rigidity of LRB was decreased by 15%. — Fig. 1: Cr ( $\gamma$ ) for LRB shear modulus of LRB decreased by 15% as the maximum value and increased by 30% as the minimum value of the expected stiffness in LRB. In the model of piers that assumed continuous girder bridges, the effect of dispersion was also analyzed by combining the case where the stiffness of LRB between piers was increased by 30% and the rigidity of LRB was decreased by 15%.

b) Hardening of LRB

The equivalent shear modulus of elasticity $G(\gamma)$ for shear cross-sectional deformation in consideration of hardening of LRB by Takahashi et al. is shown in equation (1) [12]. The first term $C_{r}(\gamma)$ in Eq. (1) includes the effect of stiffness increase due to hardening given in Tab. 2. Fig.

shows the relationship between $C_{r}(\gamma)$ and shear strain. The $C_{r}(\gamma)$ of LRB, G12 in this paper, becomes 1.17 at 250% of shear strain. The second term used $q(\gamma)$ in the Manual for Highway Bridges Bearings [2].

Table 3: Change of characteristic based on experiences of over strength for pier

Variation factor	Variation rule	Average	Variation coefficient	Average - σ	Average + σ
Yielding rigidity	$K_{PY}^{R} = (1 \pm S) \cdot AVE(K_{PY}) \cdot K_{PY}^{0}$	0.96	0.14	0.83	1.09
Yielding load	$P_{PY}^{R} = (1 \pm S) \cdot AVE(P_{PY}) \cdot P_{PY}^{0}$	1.14	0.06	1.07	1.21
□R:Stochastic quantity under dispersion, S: Coefficient of variation, AVE: Average of dispersion□0: Designed value, PY: Time on yielding of pier,σ: Standard deviation

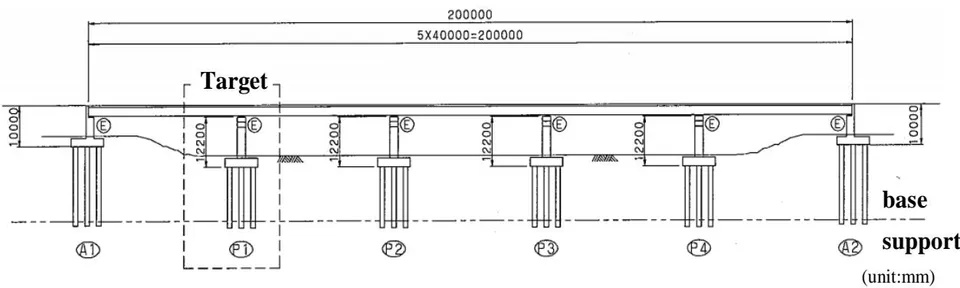

Fig. 2: General side view of examination bridge

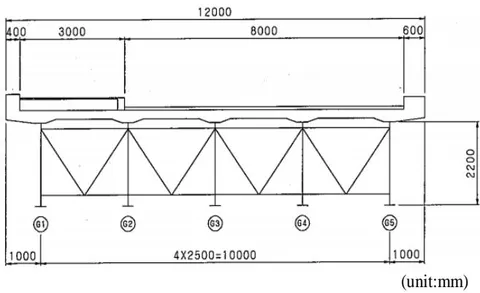

Fig. 3: Cross section of superstructure for examination bridge

Where,

$C_{r}(\gamma)$ : Strain dependency coefficient

$G_{e}$ : Shear modulus of rubber (N/mm $^{2}$ )

$q(\gamma)$ : Shear stress of lead plug (N/mm $^{2}$ ) κ: Area of lead plug/Area of rubber bearing

c) Over strength of the pier

The performance variation due to the over strength of the piers proposed by Adachi and Unjou et al. is shown in Tab. 3 [13]. This table shows the yield stiffness of the pier, the average value of the yield load, and the coefficient of variation. Here, the over strength range was set to three cases: average- $\sigma$ , average, and average+ $\sigma$ , which has a relatively high incidence. In addition, the maximum, average and minimum values of yield stiffness and yield load occur at the same time, respectively.

Table 4: Sectional component of pier

Column height(m)		10.0
Column width(m)		5.0
Column thickness(m)		2.2
Material of reinforcement	main	SD345
	hoop	SD345
Longitudinal reinforcement		L	D38ctc125-2.0 step
		T	D38ctc125-1.0 step
Transverse restriction reinforcement		L	D16ctc150, L=750
		T	D16ctc150, L=880
Reinforcement for shear force		L	D16-8, 150pitch
		T	D16-5, 150pitch

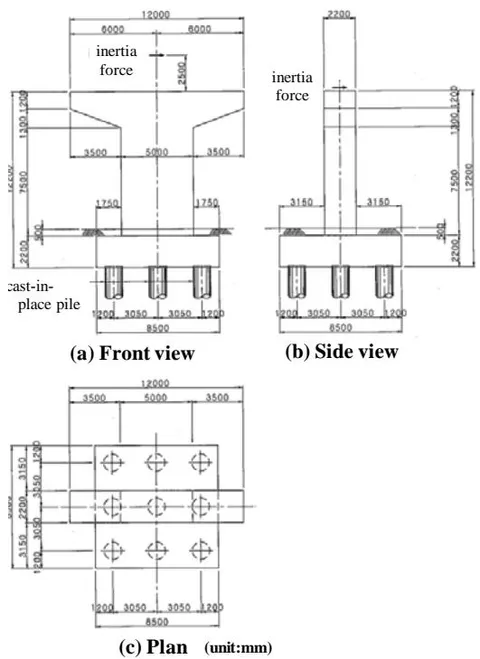

III. BRIDGE TO BE REVIEWED

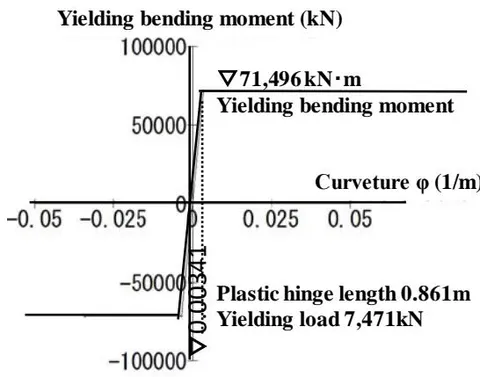

The bridge to be reviewed is located on the Type II ground listed in the Reference Design Calculation Examples of Seismic Design for Highway Bridges $[14]$ . Fig. 2 and 3 show five spans continuous non-composite steel girder bridge. Fig. 4 shows the cross-section of the pier. This bridge is equipped with distributed rubber bearings (RB). This research replaces the bearing of the pier from RB to LRB. The cross-sectional configuration of the pier was set by adjusting only the arrangement of the bar without changing the dimensions of the cross-section of the pier. The maximum shear strain of LRB is designed to 250%, the allowable shear strain. Tab. 4 and 5 show the cross-section configuration of the pier and LRB. Also, Fig. 5 shows the historical model of the pier. Tab. 6 shows the maximum shear strain of LRB and the maximum ductility factor of the pier.

Table 5: Sectional component and performance of LRB (/unit)

Item	Unit	Value
Usable dimension (bridge axial direction)	mm	735
Usable dimension (bridge perpendicular direction)	mm	735
Monostromatic thickness	mm	32
Number of layers	Sheet	4
Total thickness of rubber	mm	128
Elastic shear modulus of rubber	N/mm2	1.2
Diameter of lead plug	mm	106
Number of lead plugs	number	4
The first shape factor	-	5.367
The second shape factor	-	5.742
Modulus of longitudinal elasticity	N/mm2	290
Effective area	mm2	504926
Area of lead plugs	mm2	35299
Occupation ratio of lead plugs	-	0.070
Yielding load	kN	294.3
Shear spring constant (horizontal rigidity)	kN/m	4734
Pressure spring constant (vertical rigidity)	kN/m	1143252
Shear stress of lead plug	N/mm2	2.0
Design displacement	Mm	320
Design strain	%	250
Horizontal force	kN	1584
First rigidity	kN/m	26198
Second rigidity	kN/m	4030
Equivalent rigidity	kN/m	4950
Equivalent damping coefficient	-	0.113

Table 6: Maximum response of pier and LRB

Input seismic wave		LRB maximum shear strain (%)	Pier maximum ductility factor
Type I	I-II-1	128	0.700
	I-II-2	119	0.714
	I-II-3	110	0.710
	Average	119	0.708
Type II	I-II-1	241	1.428
	I-II-2	215	1.179
	I-II-3	289	1.448
	Average	248	1.351
Allowable		250%(320mm)	1.695(0.0449m)

Table 7: Table of hysteresis model

Application	High strain region	Hysteresis shape	Setting of shear modulus of rigidity (N/mm2)	Resistance force on 250%(kN)	Abbreviation
Handbook of bearing	Linear	Bilinear model	1.2	1,584	H-Li-Bi-1.0	H: handbookL: literatureLi: linearHD:hardeningBi: bilinearTri: trilinear1.0: non-rigid reduction0.85: rigid reduction-15%
Handbook of bearing	Linear		$1.2 \times 0.85 = 1.02$	1,357	H-Li-Bi-0.85
Conformity to handbook of bearing※	Hardening		$1.2 \times 1.17 = 1.404$	1,842	H-HD-Bi-1.0
			$1.2 \times 0.85 \times 1.17 = 1.1934$	1,576	H-HD-Bi-0.85
		Trilinear model	$1.2 \times 1.17 = 1.404$	1,842	H-HD-Tri-1.0
		Trilinear model	$1.2 \times 0.85 \times 1.17 = 1.1934$	1,576	H-HD-Tri-0.85
Literature		Bilinear model	$1.2 \times 1.17 = 1.404$	1,836	L-HD-Bi-1.0
Literature		Bilinear model	$1.2 \times 0.85 \times 1.17 = 1.1934$	1,571	L-HD-Bi-0.85

IV. Review CONDITIONS

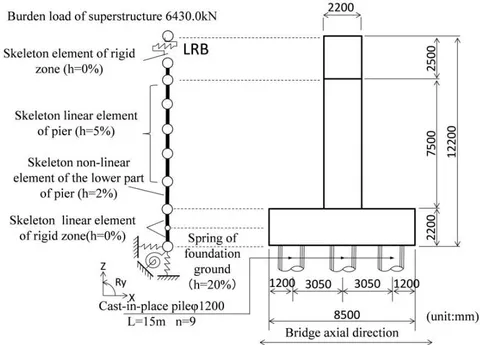

In this paper, the purpose of this research is to understand the effect of LRB stiffness reduction on single pillar pier upporting superstructure and the effect for dispersion of inertia force by combined decrease and increase of LRB stiffness on multi-pier during an earthquake. For reference, column type piers and wall type piers are representative types of piers. In this research, the column type pier is used as an analysis model. Fig. 6 shows the structural model for the analysis. This structural model is the single pillar supporting beam of the bridge under review in Fig. 2. The analysis method is a nonlinear time historical response analysis. The input seismic waves were three waves of each Type I and Type II seismic wave in the Design Specifications for Highway Bridges part 5, Seismic Design and evaluated by the average of the responses from the three different waves [1].

V. EFFECT OF HYSTERESIS CHARACTERISTICS BY REDUCING THE STIFFNESS OF LRB

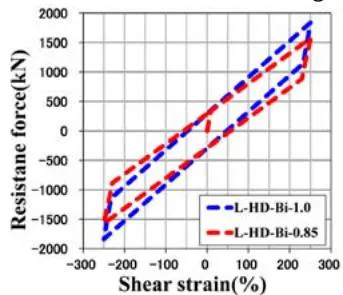

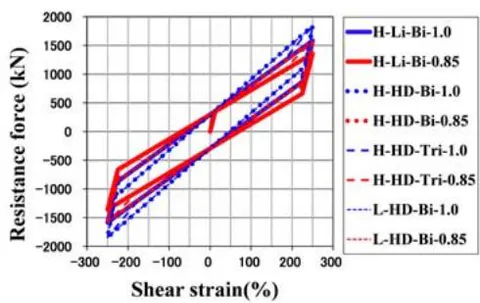

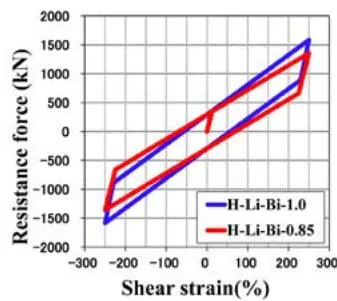

a) Conditions of LRB hysteresis

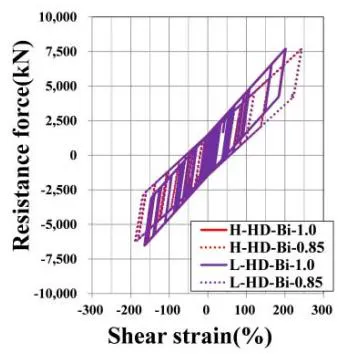

The analysis that applies the history set in manual for Highway Bridges Bearings to the hysteresis characteristic of LRB is called the current design. The stiffness, which was decreased by 15% of LRB, was designed to 0.85 times the shear modulus of the rubber. The resistance force of the laminated rubber of G12 increased by hardening is $1.2 \times 1.17 = 1.40 \, N/mm^{2}$ calculated in Fig. 1 with a shear strain of 250%. The bilinear and trilinear models are typical models considering the hardening of laminated rubber bearings. The bilinear model has a history that LRB behaves as a secondary stiffness concerning a working load equal to or higher than the yield load in the same way as the current design. The trilinear model assumes that the hardening occurs when the shear strain of the bilinear model is 175% or more, and the resistance is a history that increases linearly with respect to the shear strain. Also, comparison by analysis using the setting formula of LRB proposed by Takahashi et al. was also conducted [12]. The Tab. 7 shows the combinations used for the review. The hysteresis characteristics of the laminated rubber and lead plugs, which are the results obtained from the analysis, are superimposed and shown in Fig. 2. That is, in the region where the deformation is small, the hysteresis of the lead plug is the main. After the lead plug yields, the resistance force increases linearly due to the shear elasticity of the laminated rubber. These hysteresis characteristics were designed in the form of bilinear or trilinear. Fig. 7 shows a comparison of the history of LRB used in the analysis. The maximum shear strain was set at 250%. Convergence analysis using the hysteresis of the maximum shear strain obtained in the analysis is not performed. (a) shows all the cases and (b), (c), (d), (e) show the case where there is no stiffness drop for each hysteresis characteristic and the case where the stiffness decreases by 15%, respectively.

(c) HD-Bi and 15% rigid reduction on current design

reduction on current design (d) HD-Tri and 15% rigid reduction on current design

(e) L-HD-Tri and 15% rigid reduction on literature design Fig. 7: Comparison of hysteresis models

b) Analysis results

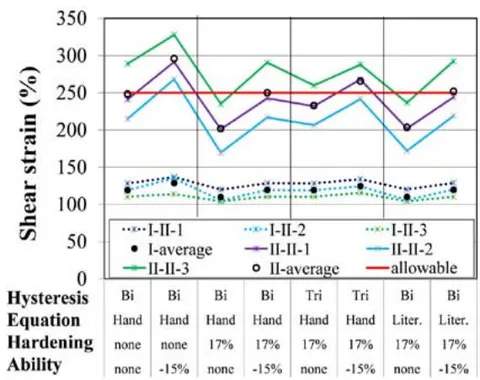

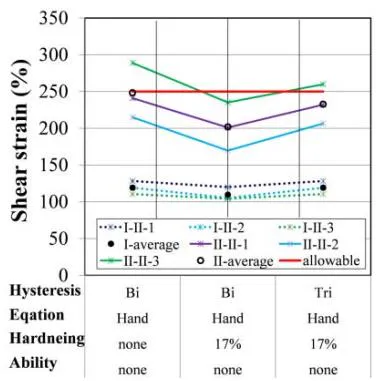

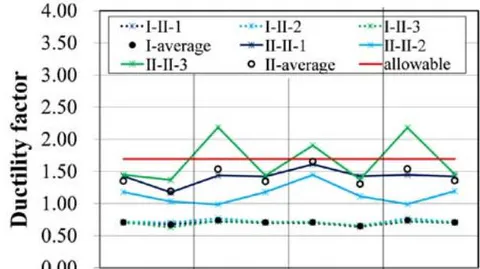

Fig. 8 shows the maximum shear strain of LRB and the maximum ductility factor of the pier due to the difference in stiffness and hysteresis of LRB. Fig. 9 and Fig. 10 show the response history of LRB and the lower part of the pier by seismic waves II-II-1, respectively.

c) Effect of the hardening on current design

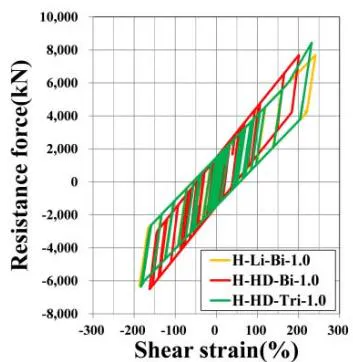

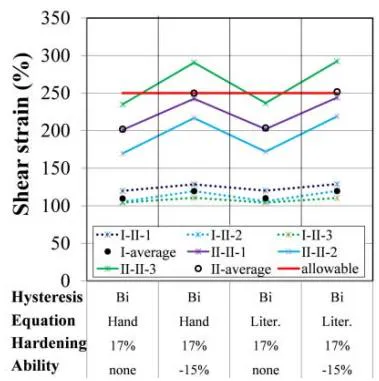

The maximum shear strain of LRB, the response history of LRB, and the response history of the lower part of the pier are shown in Fig. 11. To understand the effects of hardening, a bilinear model and a trilinear model considering current design and hardening design were applied. When the analysis is performed using a bilinear model in consideration of the hardening, the maximum shear strain is reduced to 200%. In contrast, when analyzed using a trilinear model, it is as small as 230%, which is larger than the bilinear model and smaller than the current design. In the response history, the resistance force of LRB is large in the order of current design, hardening of the bilinear model, and hardening of the trilinear model. Likewise, the curvature of the lower part of the pier shows the same order.

d) Effect of the hardening on the current design and 15% decrease in stiffness

The cases where the stiffness is reduced by 15%, current design, the maximum shear strain of LRB, the hysteresis of LRB response, and the response of the lower part of the pier in consideration of hardening are shown in Fig. 12. In the current design, the maximum shear strain of LRB is 250%, but when the stiffness decreases by 15%, the maximum shear strain may increase to 300%, resulting in fracture deformation. However, because the shear strain of LRB is suppressed by hardening, the maximum shear strain in the bilinear model is 250%, which is equivalent to the current design. In contrast, in the trilinear model, the

Bi	Bi	Bi	Bi	Tri	Tri	Bi	Bi
Hand	Hand	Hand	Hand	Hand	Hand	Liter.	Liter.
none	none	17%	17%	17%	17%	17%	17%
none	-15%	none	-15%	none	-15%	none	-15%

maximum shear strain is 270%, which is larger than the current design. Therefore, in actual design, it is necessary to consider the effect of the difference in the modeling of the hardening on the response.

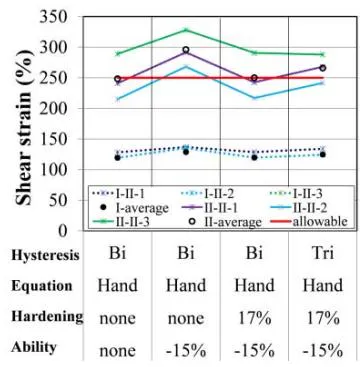

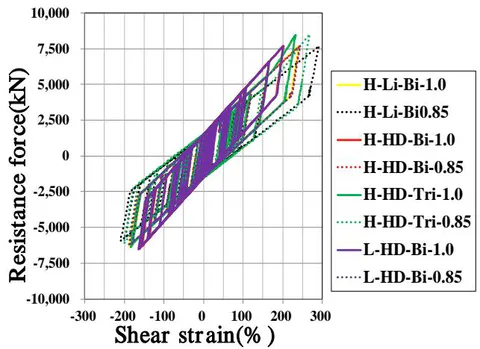

Fig. 8: Response by rigid reduction and hysteresis model of LRB

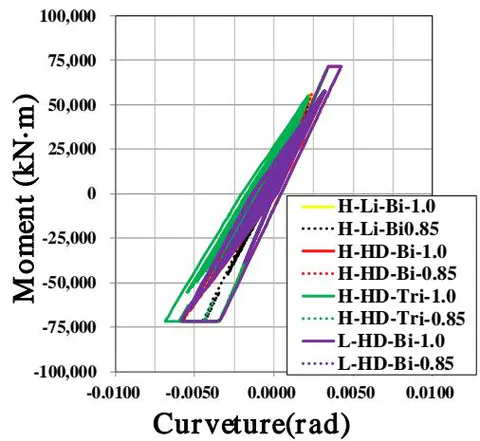

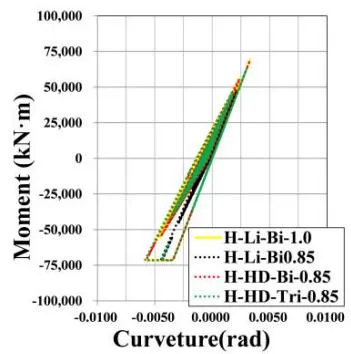

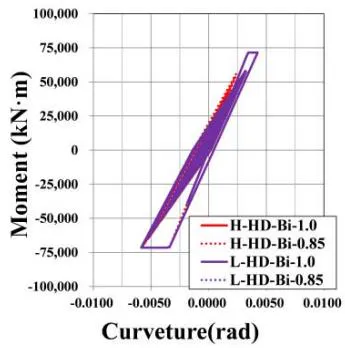

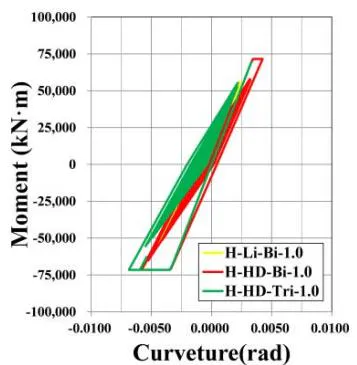

(b) Maximum ductility ratio of pier Fig. 10: Response hysteresis of pier base (II-II-1)

(a) Maximum shear strain of LRB

(c) Response curvature hysteresis on LRB Fig. 13: Effect of hardening and literature model on current design

e) Comparison of the response on hardening model and current design

The comparison of the hardening model and the response of the current design is shown in Fig. 13(a). Fig. 13(b) and (c) show the maximum shear strain of LRB, response history of LRB, and response history of the lower part of the pier when stiffness drop occurs by 15%. The maximum shear strain of LRB is 250% in the current design and 300% when the stiffness is reduced by 15%. In this paper, the maximum shear strain and LRB response history are the same as those of the current design, but the curvature history of the lower part of the pier is slightly different. This is because the rubber dependence coefficient $C_{r}(\gamma)$ applied in the process of setting the hardening of the current design is equal to the value set in this paper. However, since the coefficient $q(\gamma)$ for the lead plugs in the current design uses the values given in Manual for Highway Bridges Bearings, it is considered that the response of this paper and the current design may differ depending on the lead area ratio setting of LRB.

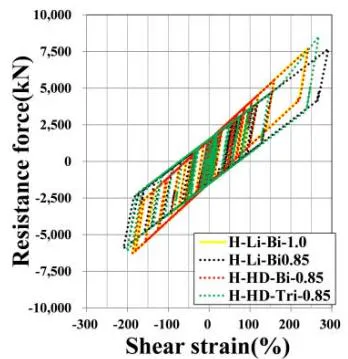

Fig. 9: Response hysteresis of LRB (II-II-1)

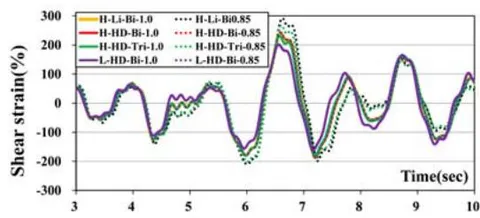

(b) From 3 to 10 seconds Fig. 14: Shear strain responsive wave of LRB (II-II-1)

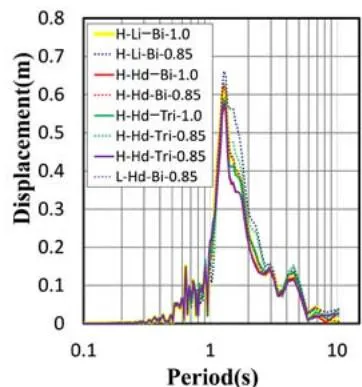

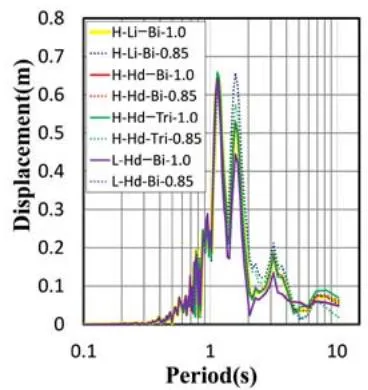

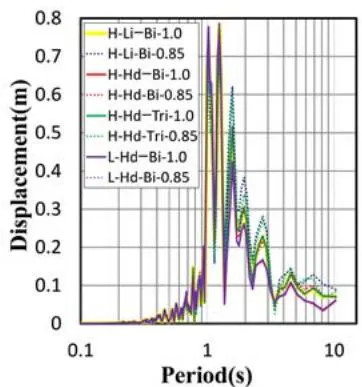

(c)II-III-3 Fig. 16: Fourier spectrum responsive displacement of superstructure

f) Time history response waveform and period characteristics

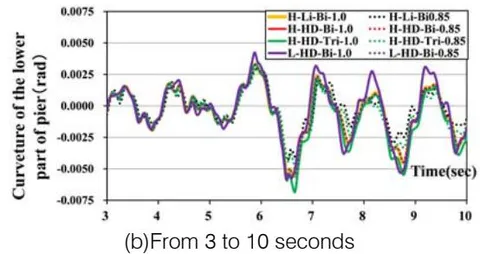

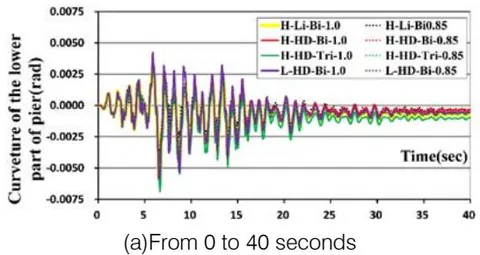

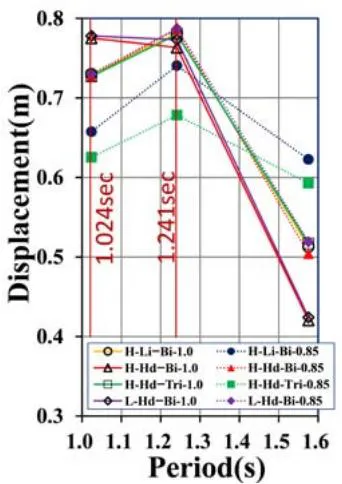

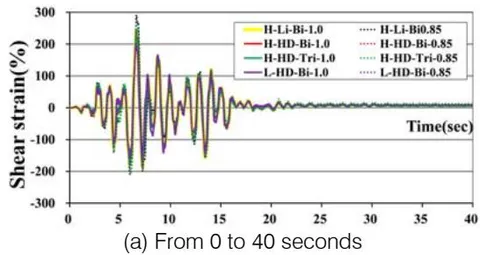

Fig. 14 and 15 show the time history response waveforms of shear strain in LRB and curvature of the lower part of the pier when II-II-1 seismic waves are input. Fig. 14(b) enlarges the response of the main behavior, 3 to 10 seconds. The response waveform for each LRB history shape is almost the same regardless of the history shape. However, the difference in the maximum response value is shown around 6.5 seconds. When the stiffness decreased by 15%, it was confirmed that the shear deformation of LRB was larger, and the response period was longer. The maximum shear strain of LRB decreases due to the effect of hardening, but when the hardening is represented by the trilinear model, the maximum yielding load of the pier becomes large. In addition, at 175% shear strain, the stiffness of the rubber changes rapidly in the trilinear model, but the shear strain of LRB is not large, and a slight change in curvature of the lower part of the pier can be seen. Fig. 16 shows the Fourier spectrum due to the displacement of the superstructure to determine the period. Each earthquake waves are predominant during the same period regardless of LRB recording characteristics and reduction in stiffness. In II-II-1, there are three predominant period ranges, in II-II-2, two predominant period ranges, and in II-II-3, a single period range is widely distributed. The reason why the predominant period range is different for each wave is due to the characteristics of the input wave and the nonlinearity of

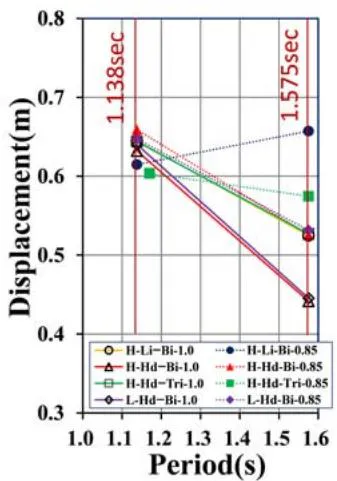

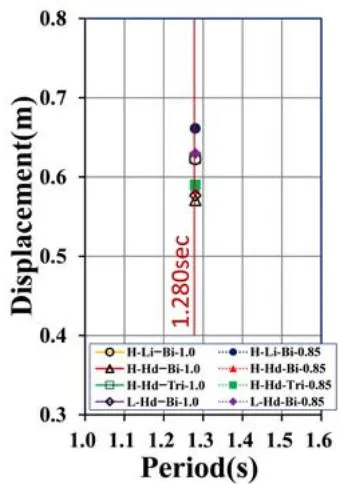

LRB and the pier. Fig. 17 shows the period with the maximum value of the Fourier spectrum in each predominant period region. In II-II-1 waves, the period is most predominant at approximately 1.241 seconds. On the contrary, the current design with the bilinear model, which is a model with hardening under constant stiffness, and in case there is a predominant as well at a shorter period of 1.024 seconds. In the II-II-2 wave, the predominant period appears at around 1.138 seconds, but in the current design that does not consider hardening at a stiffness drop of 15%, the predominant period appears at 1.575 seconds. In the II-II-3 wave, the period is mostly same predominant in all cases at 1.280 seconds. This predominant response period should be considered based on not only the difference in seismic waves but also the difference in hysteresis due to stiffness reduction or hardening.

g) The

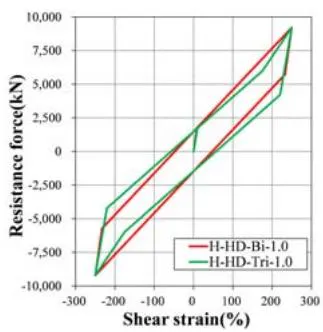

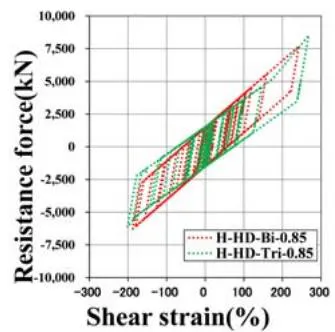

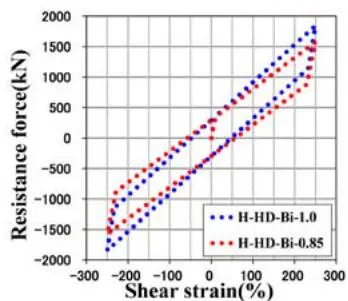

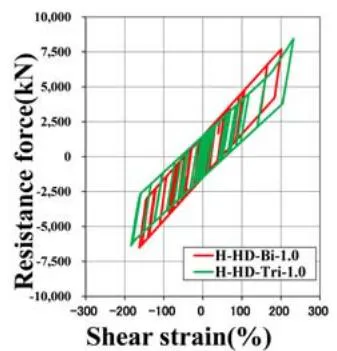

Fig. 18(a) shows the comparison of the history of the bilinear model of LRB and the trilinear model. These models are nonlinear models considering the hardening phenomenon of LRB. The same resistance force was designed at 250% of shear strain, but the result of the response history by the same seismic wave is different. Fig. 18(b) and 18(c) show the response results of LRB (HD-Bi-1.0, HD-Tri-1.0) without stiffness drop and LRB (HD-Bi-0.85, HD-Tri-0.85) with stiffness drop by inputting seismic wave II-II-1. As a result, there was a remarkable difference in the response history of LRB between the bilinear model and the trilinear model, and the trilinear model showed a larger shear strain than the bilinear model. This reason can be confirmed from each set history shown in Fig. 18. The resistance of LRB increases with increasing maximum shear strain. As shown in Fig. 18(b), when the maximum shear strain is less than 250%, the resistance force of the trilinear model is less than that of the bilinear model when the shear strain is the same. This means that with the same resistance force, the shear deformation of the trilinear model becomes larger than that of the bilinear model. The maximum shear strain of the hysteresis set in this analysis is 250%. Since this is different from the maximum shear strain in the results of the dynamic analysis, clearly the trilinear model cannot be a large response unless the maximum shear strain to determine the hysteresis converges. The maximum shear strain of the bilinear model is about 250% of the response history of LRB with reduced stiffness of 15% shown in Fig. 18(c). Since this shear strain is consistent with the value set in the analysis, there is no need to reset the hysteresis shape due to the maximum shear strain. On the contrary, since the response history of the trilinear model is larger than 250%, it is necessary to converge the history shape to the response history. At this point, the response of the trilinear model is larger than that of the bilinear model. Likewise, it can be seen that the response of the trilinear model is greater for the curvature of the lower part of the pier in Fig. 11.

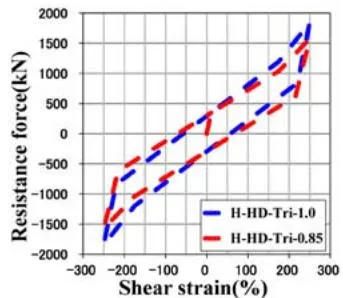

(c)H-HD-Bi-0.85 and H-HD-Tri-0.85 Fig. 18: Basic hysteresis of bilinear model and trilinear model (250%, II-II-1)

h) Response waveform and predominant period

Tab. 8 shows the maximum values of displacement and resistance force at the time of maximum shear strain in Fig. 14. In addition, this table contains the equivalent damping ratio for the response history of the bilinear model and the trilinear model, and the correction factor for each equivalent damping ratio. The absorbed energy was calculated as the historic area of one cycle. Fig. 19 shows the energy absorbed by LRB during inputting the seismic wave. When calculating the equivalent damping constant, the strain energy was adjusted to an average value so that the starting point and the ending point could be one cycle. The absorbed energy is large in the trilinear model, but the equivalent damping constant is large in the bilinear model. The reason is that the resistance force and theelastic energy of the trilinear model are relatively larger than the bilinear model in the same shear strain.

The correction factor for each equivalent damping constant is slightly larger in the bilinear model as

0.014. Still it does not indicate a difference in the decrease in response due to the damping performance.

Table 8: Hysteresis of bilinear model and trilinear model (II-II-1)

		Time	Displacement	Resistance force	Absorbed energy $\bigtriangleup W$	Equivalent damping constant, h	Correction factor based on damping constant, CD	Equivalent damping constant at 250%, h
		sec	m	kN	kN·m	%	Correction factor based on damping constant, CD	%
H-HD-Bi-1.0	Time on minimum response just before maximum response	5.95	-0.199	-6,286	1,335.2	13.0	0.743	10.7
	Time on maximum displacement	6.56	0.257	7,684
	Time on minimum response just after maximum response	7.16	-0.208	-6,502
H-HD-Tri-1.0	Time on minimum response just before maximum response	5.98	-0.231	-6,211	1,508.1	12.1	0.757	10.2
	Time on maximum displacement	6.57	0.297	8,436
	Time on minimum response just after maximum response	7.20	-0.235	-6,358

i) Consideration of LRB stiffness drop and response history in design

The average of three seismic waves was evaluated in the current design. Depending on the seismic wave, there were some cases where the shear strain was greater than 250%. In particular, Fig. 11-(a) shows that the shear strain is about 290% in II-II-3 of the current design. This means that the shear strain of LRB exceeds 250% and approaches the fracture strain. On the contrary, when analyzed with a bilinear model considering hardening, the maximum shear strain among the three seismic waves is about 230%. Since it is within 250% of the allowable shear strain, the analysis results can be sufficiently reliable. Therefore, after analyzing the response of LRB in the current design, it is better to verify it using a bilinear model that considers the hardening and to confirm the fact that the shear strain of LRB is less than 250%. On the other hand, the trilinear model can be used to analyze the hardening phenomenon, but before that, it is necessary to verify the validity of the tertiary stiffness of LRB in the shear strain exceeding 250%.

VI. THE IMPACT OF OVER STRENGTH OF PIER ON RESPONSE

a) Setting of the pier

To confirm the impact of the over strength of the pier on the response during an earthquake, a pier with a small plasticization with a maximum ductility factor of 1.351 (abbreviation as pier with $\mu = 1.351$ ) used in Tab. 6 and two piers with a ductility factor of 2.005 and 3.316 (abbreviation as pier with $\mu = 2.005$ , $\mu = 3.316$ ) were added. Tab. 9 shows the conditions of these three piers and each set LRB. A pier with a high ductility factor was added to investigate the effect of plasticization due to over strength of piers on the behavior of LRB during an earthquake. The maximum ductility factor of the added pier does not satisfy the allowable ductility factor, but the purpose is to understand the effect of the high ductility factor due to over strength on the pier. In this paper, pier characteristics were determined based on the amount of change in over strength. The characteristics of the pier were divided into 4 cases: the 'standard value' without considering the over strength, the 'average value' with the over strength considered, and finally, the ' $\pm\sigma$ ' considering the standard deviation. Also, the yield stiffness and yield load of the pier were set in the order of standard value, $-\sigma$ , average value, and $+\sigma$ . The ratio of yield load was set to 1.00: 1.07: 1.14: 1.21.

b) Analysis result

The maximum shear strain of LRB and the maximum ductility factor of the pier with seismic waves of level 2 seismic Type I and Type II are shown in Fig. 20. The horizontal axis represents the yield stiffness and yield load of each pier. In addition, even when the pier has an elastic response, the value obtained by dividing the maximum displacement of the pier by the yield displacement was defined as the ductility factor. The over strength is evaluated as the average of the responses by three seismic waves.

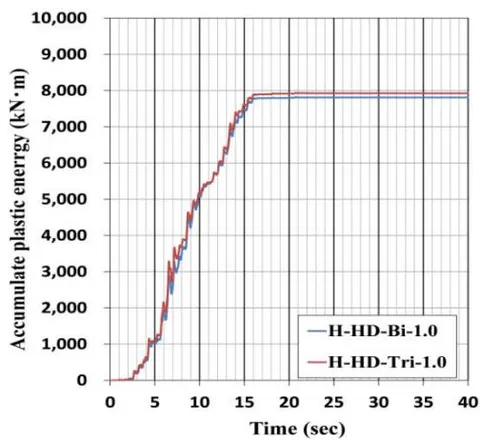

Fig. 19: Accumulate plastic energy on bilinear model and trilinear model (II-II-1)

Table 9: Pier for investigating over strength

		Basis pier	Middle ductility pier	Much ductility pier
Mass of superstructure (kN)		6430	6430	6430
Main reinforcement	Material	SD345	SD345	SD345
Main reinforcement	Diameter	D38	D35	D32
Distance of transverse restriction		L750	L750	L1000
Configuration of LRB	Plane measure (mm)	□735	□700	□675
	Monostromatic thickness (mm)	32	25	19
	Number of layers	4	7	8
	Total thickness of rubber (mm)	128	175	152
	Occupancy of lead plugs (%)	7.0	6.9	7.1
	The first shape factor S1	5.37	6.55	8.29
	The second shape factor S2	5.74	4.00	4.44
Response of pier	Ductility factor	1.351	2.005	3.316
Response of pier	Allowable ductility factor	1.695	1.628	1.395
LRB	shear strain (%)	248	246	253
LRB	allowable shear strain (%)	250	250	250

(a) Maximum shear strain of LRB

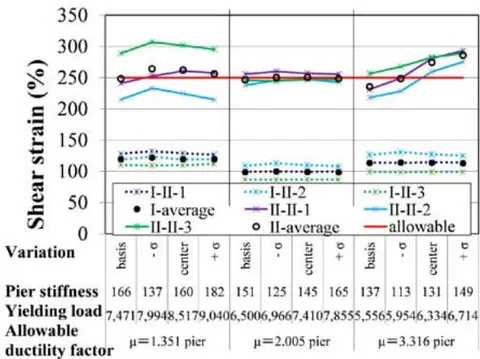

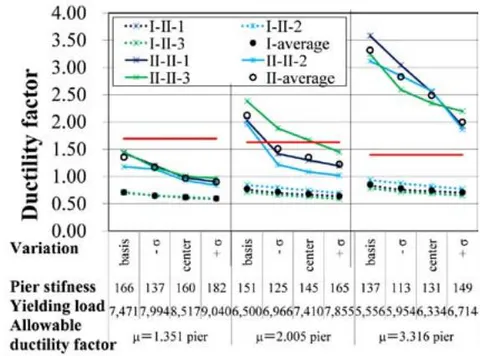

(b) Maximum ductility ratio of pier Fig. 20: Response including influence of over strength

c) Effect on the maximum shear strain of LRB

As shown in Fig. 20, since the pier behaves elastically in Type I, the pier yield load does not affect the maximum shear strain of LRB. However, because the yield stiffness and over strength are increasing at the same time, the maximum shear strain of LRB changes slightly. The following is a review of the response of Type II. In Fig. 20, in the pier with $\mu = 1.351$ , the maximum shear strain of LRB increases as the yield load becomes $-\sigma$ to the standard value, but at the average value, $+\sigma$ , the yield load increases and the shear strain decreases. In contrast, the $\mu = 2.005$ pier has an overall constant shear strain of LRB. Finally, for a pier with $\mu = 3.316$ , the yield load and the maximum shear strain of LRB are proportional. In general, when the pier is plasticized, the maximum acting force of the rubber bearing becomes large, depending on the yield load of the pier. For this reason, the maximum shear strain of LRB of a pier with large plasticization and $\mu = 3.316$ is consistent with the general behavior. On the other hand, when the yield load of the pier increases, the maximum ductility factor of the pier necessarily decreases. As a result, the maximum ductility factor of pier with $\mu = 3.316$ at large plasticization decreases linearly due to the increase in the yield load of the pier. However, the trends of the pier with $\mu = 1.351$ and pier with $\mu = 2.005$ are different. The reason is that at the pier with $\mu = 1.351$ , the average yield load and the maximum ductility factor of $+\sigma$ are less than 1.0 and have the elastic response. That is, since the pier is not plasticized, the yield load of the pier does not directly affect the maximum shear strain of

(a) Response by rigid reduction and individual hysteresis of LRB

LRB. The pier with $\mu = 2.005$ is in a plasticized state due to over strength, but the maximum shear strain of LRB shows a different result from that of the pier with $\mu = 3.316$ because there is little change due to over strength.

(b) Response including influence of over strength of pier Fig. 21: Dynamic correction factor

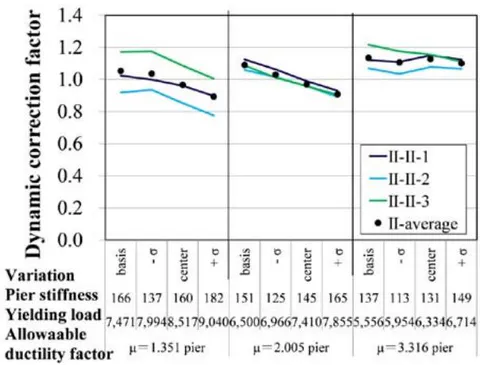

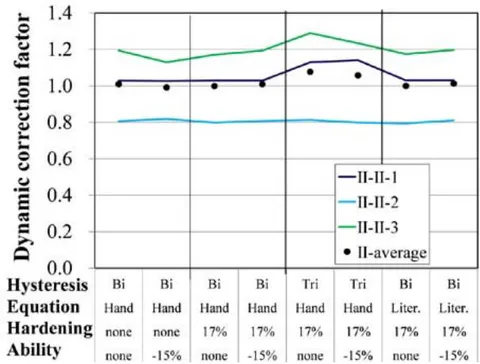

d) Dynamic correction factor

The dynamic correction factor is calculated by dividing the maximum resistance force of LRB by the yield load of the pier. When the pier with $\mu = 3.316$ in Fig. 21(b) is plasticized, the dynamic correction factor does not change significantly even if the yield load of the pier increases. In contrast, the dynamic correction factors for pier with $\mu = 1.351$ and $\mu = 2.005$ decrease with increasing yield load. In addition, when the yield load is the average value and $+\sigma$ , the dynamic correction factor is less than 1.0, which means that LRB acting force is less than the yield load. In $\mu = 1.351$ pier, the pier behaves elastically and $\mu = 2.005$ pier is plasticized, but the force acting on LRB is smaller than the yield load. For this reason, the increase in yield load did not significantly affect the maximum shear strain of LRB. This factor is considered to be caused by the inertia of the pier itself and the vibration mode of the second or higher order.

e) Evaluation of LRB for over strength

In the seismic isolation bridge, the plasticization of the lower part of the pier is suppressed. However, it was confirmed that the maximum shear strain of the bearing did not necessarily increase even if the yield load increased due to over strength. Since the specifications of the designed bridge are varied, the effects of over strength are different. Therefore, it is necessary to investigate the effect of over strength on the response for each bridge. Meanwhile, the dynamic correction factor in Fig. 21(a) is a vibration system using a pier with $\mu = 1.351$ , and there is little change in the dynamic correction factor due to the elastic response of the seismic wave. On the contrary, when the hardening of LRB is analyzed with a trilinear model, the dynamic correction factor is increasing. This is because the force on the pier was increased by the trilinear model. As a result, it is larger than the case of applying the bilinear model.

f) Effect of over strength to the lower part of the pier

In general, the yield load of the lower part of the pier is designed to be more than 1.1 times the yield load of the pier, so that the lower part of the pier does not yield before the pier. However, if the yield load of the lower part of the pier is exceeded due to over strength, there is a concern that the lower part of the pier will yield first. Fig. 22 shows the relationship between the bending moment and the yield bending moment of the lower part of the pier considering the over strength of the pier. As a result, the bending moment of the lower part of the pier is difficult to increase and slightly exceeds 1.1 times the yield bending moment of the pier without the effect of over strength. Therefore, the maximum shear strain of LRB of the seismic isolation bridge, where plasticization of the pier is suppressed, is not affected by the over-strength, but it is necessary to consider the safety of the lower part of the pier separately.

VII. INFLUENCE OF DISPERSION IN MULTI-SPAN GIRDERS

a) Pier model to be reviewed

The framework of the girders of the two single column bridge piers and four single pillar pier supporting superstructure, which are the models to be reviewed is shown in Fig.23. For this model, the effect of the stiffness change of LRB between piers on the load distribution was analyzed for each case. The specifications of the pier model are the same as those used in this paper. The stiffness of LRB was set by increasing or decreasing to 1.30 times and 0.85 times the maximum value of the design based on reference 11) and combined in Tab. 10 for each pier. The hysteresis shape was set as a bilinear model as shown in Fig. 24. Here, the cross-sectional area of the girders installed between piers is 0.6085m2 according to reference 14).

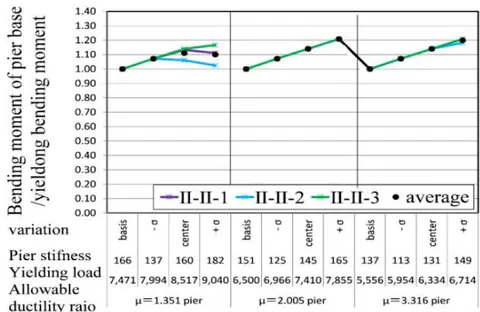

Fig. 22: Maximum bending moment of over strengthened pier with
\mu=1.351 — Fig. 22: Maximum bending moment of over strengthened pier with $\mu=1.351$

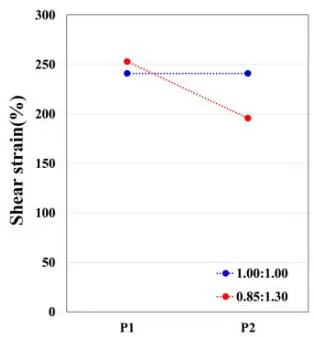

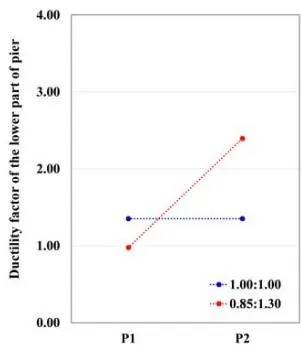

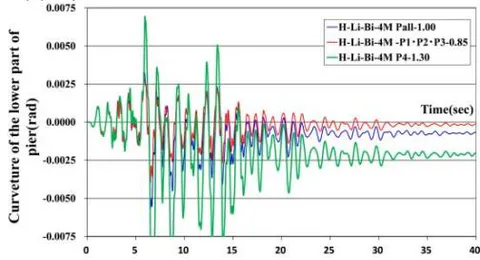

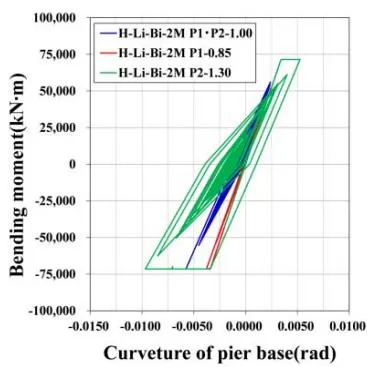

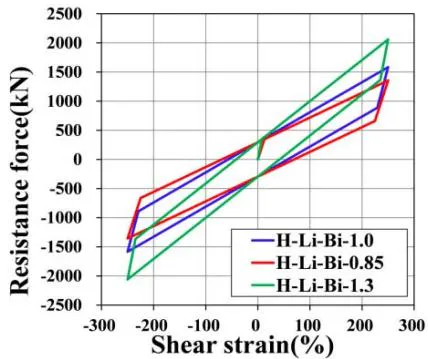

b) Effect of response history and dispersion between piers

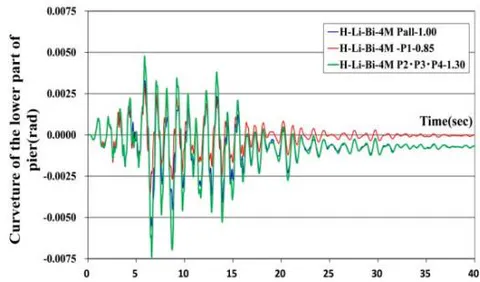

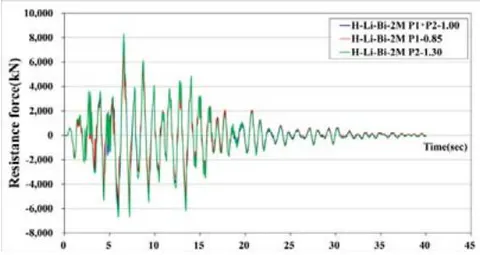

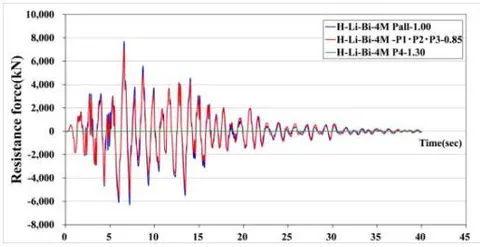

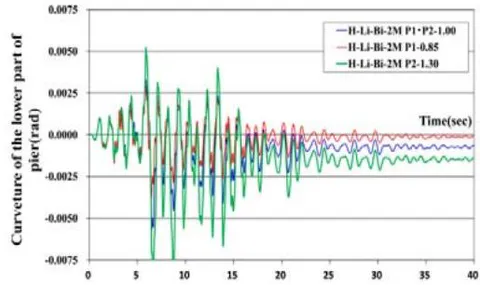

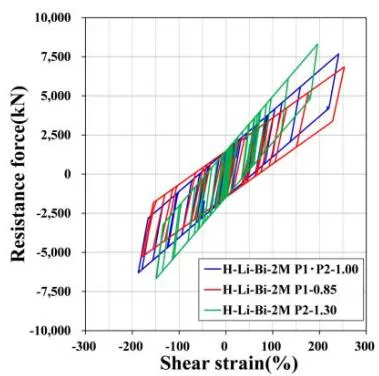

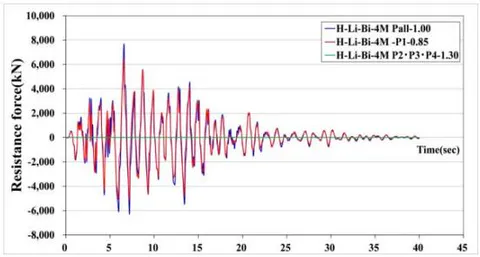

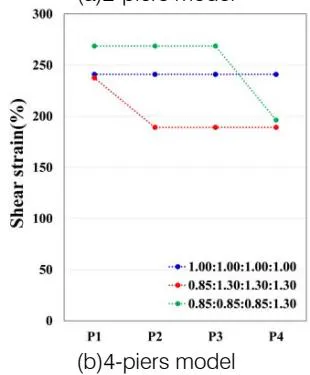

The response history of LRB and the history of the lower part of the pier are shown in Fig. 25 and Fig. 26. The shear strain of LRB of the 0.85 model (0.85) is larger than that of the 1.00 model (1.00) without stiffness change and smaller than that of the 1.30 model (1.30). However, the shear strain of 0.85 does not increase in the case where the 1.30 model increases from the four pier models to three. This is considered to be because the inertia force of the superstructure is concentrated at 1.30. On the other hand, the response of the lower part of the pier is largely plasticized in the 1.30, but plasticization hardly occurs in the 0.85. In particular, in the case of one 1.30 among the four pier models, an extremely large plasticization occurs because most of the inertia force of the superstructure is concentrated only in this pier. However, the response change of LRB is not much different compared to the plasticization of the lower part of the pier. This means that it is difficult to concentrate the load on LRB due to the plasticization of the pier, but the seismic energy is largely consumed as the plasticization of the lower part of the pier proceeds. The time history response resistance waveform of LRB and the time history response curvature at the lower part of the pier are shown in Fig. 27 and 28. In the time history response waveform, there is no significant difference in the resistance waveform of each model's LRB. In contrast, the curvature of the time history response at the lower part of the pier varies greatly for each pier. Particularly, when the residual variation at the 1.30 pier is large and there is only one 1.30 model, quite large residual variation occurs. The comparison of the shear strain of LRB, the bending moment of the lower part of the pier, and the ductility factor of the lower part of the pier between models are shown in Fig. 29, Fig. 30 and Fig. 31, respectively. From this, it can be seen that when the rigidity of the 1.30 model and LRB is increased, the response of LRB decreases, but on the contrary, the plasticization of the lower part of the pier becomes large. In conclusion, if there is a difference in the performance of LRB for each pier, it gives a significant effect in the plasticization of LRB and the lower part of the pier, and has a greater effect on the pier. Although the results of this research are extreme cases, it is desirable to make LRB installed at each pier in the same manufacturing process as much as possible so that there is no difference in performance of LRB.

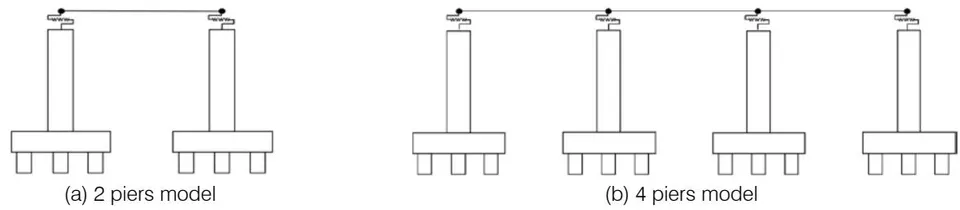

Fig. 23: Dispersion effect review model of multi span girder

Table 10: Stiffness of LRB on each pier

		P1	P2	P3	P4	Notation for each pier
2-piers model	-1	1.00	1.00	—	—	P1, P2: H-Li-Bi-2M P1·P2-1.00
2-piers model	-2	0.85	1.30	—	—	P1: H-Li-Bi-2M P1-0.85	P2: H-Li-Bi-2M P2-1.30
4-piers model	-1	1.00	1.00	1.00	1.00	P1, P2, P3, P4: H-Li-Bi-4M Pall-1.00
	-2	0.85	1.30	1.30	1.30	P1: H-Li-Bi-4M -P1-0.85	P2,P3,P4: H-Li-Bi-4M P2·P3·P4-1.30
	-3	0.85	0.85	0.85	1.30	P1, P2, P3: H-Li-Bi-4M -P1·P2·P3-0.85	P4: H-Li-Bi-4M P4-1.30

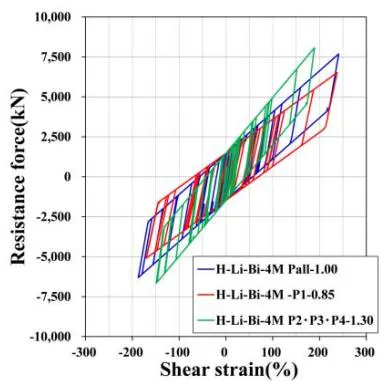

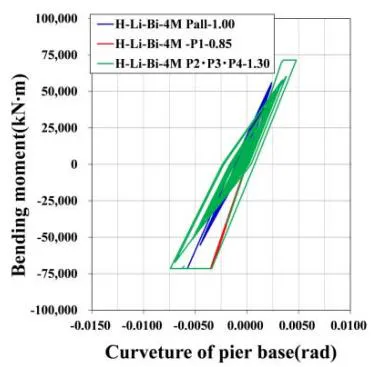

Fig. 25: Hysteresis of LRB P1:0.85 – P2·P3·P4:1.30model

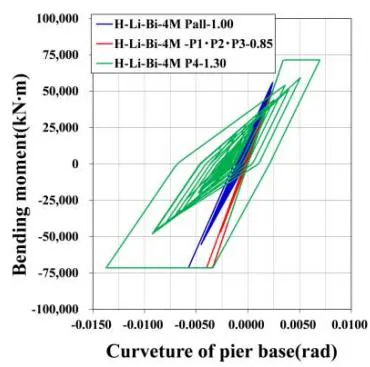

(b) 4-piers model P1·P2·P3:0.85 – P4:1.30model Fig. 26: Hysteresis of pier base

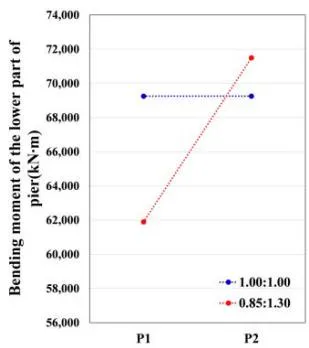

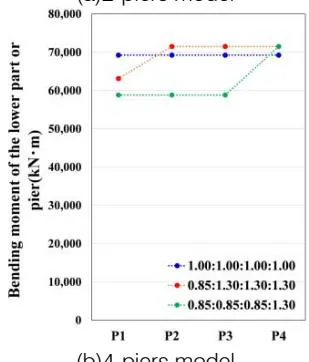

(a)2-piers model (b)4-piers model Fig. 30: Bending moment of pier

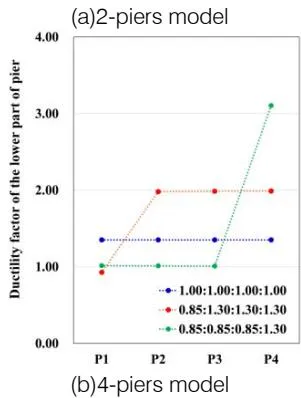

VIII. CONCLUSION

Based on the analysis results presented in this paper, the main conclusions are as follows:

Considering the hardening of LRB in the current design reduces the maximum shear strain of LRB. In the current design, the maximum shear strain is about 250%, but in the bilinear model and the trilinear model considering hardening, it is reduced to 200% and 230%, respectively. In general, as in this paper, when considering hardening, the maximum shear strain of LRB is set to be larger for the trilinear model than for the bilinear model.
Suppose the maximum shear strain of LRB is designed to be 250% according to the current design, considering the decrease in stiffness of 15%, the maximum shear strain of LRB increases to about 300%, so there is a risk of fracture. However, the hardening phenomenon must occur and it becomes difficult to fracture because the shear strain is reduced to about 250% when considered in the bilinear model. In contrast, in the trilinear model, the shear strain is about 270%, which is greater than the allowable shear strain 250%. In conclusion, when designing in consideration of hardening, it is necessary to review the modeling method of hardening.
It is necessary to understand that in a seismic isolation bridge, the predominant period depends not only on the difference in seismic waves but also on LRB hysteresis setting and nonlinearity.
When the allowable ductility factor of the pier is set to be small, such as a seismic isolation bridge, it is expected that the effect of the over strength of the pier on the maximum shear strain of LRB is small. On the contrary, in the design of plasticizing piers largely, it is necessary to pay attention to the increase in the maximum shear strain of the bearings due to the over strength of the piers. Based on the results presented in this paper, it was confirmed that LRB performance in the current design of LRB is difficult to become larger than the expected response in the design due to the hardening occurring in the high deformation region even if the stiffness decreases due to various dependencies or durability. In addition, in the seismic isolation design with limited plasticization of the pier, the effect of the over strength of the pier was found to be small. In conclusion, it means that when the seismic isolation design according to the current design is applied in the actual design, the response of LRB due to the performance change of the bearing (LRB) or the over strength of the pier does not significantly exceed the allowable shear deformation.
If the stiffness of LRB between piers is different from the design value, the response of LRB with small stiffness increases due to the difference, or the piers with LRB with high stiffness are large plasticized. This means that it is different from the expected value of the design. There are various factors for fluctuations in LRB between piers. Therefore, it is important to manufacture in the same manufacturing process as LRB used in the same pier in order not to cause a relative difference in LRB between piers.

IX. AFTERWORD

In this paper, LRB seismic safety was evaluated in cases where the stiffness of LRB is smaller than the design stiffness and the yield load of the pier is increased by selecting a single column pier model in a bridge using LRB. In this regard, if the stiffness of LRB is greater than the design expected, there is a possibility that a large inertia force acts on the pier and the safety of the pier is lost when the earthquake occurs. However, in general, the design of piers has a greater allowance during an earthquake than LRB, and the yield load of piers due to over strength is greater than the value determined in the design. In addition, since the earthquake safety factor of the seismic isolation designed pier is twice that of the distributed bearing (RB), it is thought that there is a large allowance for the safety during an earthquake, but it is important to note that an earthquake behavior of the seismic isolation bridge is not necessarily guaranteed. For this reason, it is necessary to evaluate the safety of the pier by increasing the response of the pier of the seismic isolation bridge. In addition, a case study was conducted on the effect of the stiffness change of LRB between piers on the dispersion of the inertia force of the continuous girder. Depending on the pier, there are various factors that affect the stiffness of LRB. Therefore, it is important to manufacture LRB in the same manufacturing process so that stiffness does not change. In this paper, the statically indeterminate force due to temperature change and the characteristics of the foundation were not verified as factors that increase the response of the seismic isolation bearing. Among them, temperature change is a clearly occurring phenomenon, and if the length of the extension girder is long, like a multi-span continuous girder bridge, the effect on the earthquake response at low and high temperatures is clearly evident. Most of the statically indeterminate force is generated by plasticizing the pier, which increases the ductility factor and residual displacement of the pier, and also increases the response variation and residual displacement of the bearing. This means that bridges that are likely to have increased the statically indeterminate force need to check their behavior during an earthquake in the state of deformation when the temperature changes. In addition, since the temperature change affects the hysteresis characteristics of the bearing, it is preferable to use the hysteresis shape in consideration of these factors. However, in general, it is not necessary to consider a bridge that is not long because the temperature change has a small effect on the response during an earthquake. On the other hand, the variation in the dispersion of the inertia force of the continuous girder is likely to be influenced by the performance variation of the seismic isolation bearing of the pier. Therefore, in order to reduce the relative performance fluctuation between the seismic isolation bearings, it is necessary to make the manufacturing lot of the seismic isolation bearing used in the bridge almost identical. As a result, it can be expected that the effect on the horizontal force distribution of the continuous girder is reduced and the behavior is difficult to damage during an earthquake determined in the structural design $[8]$ . The influence of the characteristics of the foundation of the ground is expected to vary widely. Therefore, since it is difficult to set design conditions, it is necessary to prevent ground fluctuations from affecting the response during an earthquake through secondary plasticization of piers like a seismic isolation bridge.

APPENDIX

Formula for $R_{k}$ in East, Central and West Japan Expressway co., Ltd. Construction Management Guidelines [11] $R_{k+}$

$R_{k - }$

Where each $R_{k}$ is the ratio representing the change in various factors.
