I. INTRODUCTION

MOLECULAR communication (MC) is a new type of communication using molecules as information carriers, which can be used to its advantage in scenarios where conventional wireless communication is not suitable, such as in confined pipes, seawater or body areas. In MC systems, the molecules usually undergo Brownian motion, and as the diffusion distance increases, the molecular signal attenuates severely, making the diffusion transmission distance very limited. At the same time, the large transmission delay of freely diffusing molecules causes severe inter-symbol interference (ISI), which is an important factor affecting system performance. In order to extend the transmission distance and improve the system performance, a suitable channel transmission model is needed to study the mechanism. Because their small size and the fact that they do not easily communicate using electrons or electromagnetic waves, MC offers a new mechanism for nanometers communication by transporting molecules to represent information [1], [2]. These nanomachines have computing, storage and drive functions [3]. Due to their own limitations, they cannot perform the corresponding tasks, so they are interconnected to overcome their limitations and form a nanonetwork with certain functions that work together in a collaborative area to accomplish specific tasks[4]–[6].

The idea that nanomachines achieve information exchange through the emission, transmission and reception of information molecules comes from the exchange of information between cells in nature [7]. Diffusion-based nanotechnology for MC has a wide range of promising applications, mainly in biomedicine. A biological system (e.g., nanomachines), each performing simple and specific operations such as the uptaking, processing and releasing of molecules, as well as cellular interactions to perform various functions of the body(e.g., cell metabolism, molecular replication, etc.) [8].

The current demodulation algorithm applied to the received message in MC is mainly based on the detection of the number of molecules. In a fixed time slot, the transmitter sends a certain number of molecules to represent message "1", while no molecules are sent to represent message "0". The receiver demodulates the message to bit "1" when and only when the number of molecules received exceeds the set threshold, otherwise the message is demodulated to bit "0". The whole communication process is based on the time slot for message transmission. This demodulation algorithm based on the number of molecules is very simple to implement. However, due to the random diffusion of molecules and ISI caused by the accumulated molecules in the medium, the recognition rate of the signal during demodulation at the receiver side is reduced, resulting in a higher BER and the reliability of the communication is greatly affected.

In order to solve the above problems, research on diffusion based MC systems has attracted a lot of academic attention. By adding relay nodes, the transmission distance of diffusing molecules can be enhanced and the system performance can be improved. By introducing relay nodes, the transmission distance of diffusion MC can be extended. Meanwhile, the system performance can be improved $[9]$, $[10]$. In conventional wireless communication systems, decode-and-forward (DF) is used to enhance system performance. A point-to-point relay model based on MC can significantly improve the transmission reliability, and related on MC relay has been studied in several literature. In [11], diffusion-based sensory relay transmission strategies for MC systems were investigated, and although bacteria were used as information carriers, the essence of the transmission was still diffusion. The DF relay transmission model for diffusion MC systems was proposed in [12], where the channel model considers the effects of noise and channel memory, while exploring the performance of the BER in the sysytem subject to channel fading versus the optimal relay location. Literature [12] and [13] explored the BER performance of the system in DF and amplify-and-forward (AF) transmission modes, respectively. A diffusion-based model of a reversible binding system for DF relay ligands and receptor for MC is presented in [14], where the time-varying spatial distribution of information is characterised based on the reversible bidding and separation of ligands and receptors on the receiver surface. The literature [15] describes a diffusion based molecular theory system model based on the influence of molecular delivery sequences and obtains the information transmission rate of the relay channel under the influence of the sequence-based approach. In [16] the authors built an AF relay system and analysed the performance of the system under different detection schemes. In [17] the authors developed a DF relay model for MC systems based on drift diffusion, applied to the human vascular scenario, approximated the number of molecules received to a normal distribution and solved for a closed-form expression for the BER of the system. These authors after further research, proposed a DF relay system model based on energy detection in [18]. In [19], a cooperative diffusion-based MC network model is considered, which consisting of single source, single DF relay, and single destination.

However, mobile MC is needed in many envisioned applications. A static transmitter and a mobile bacterium-based receiver are considered in $[20]$, meanwhile an adaptive ISI mitigation method and two adaptive detection schemes are proposed for the mobile scenario. In $[21]$, authors consider a mobile MC system where the fluid medium has a fully developed homogeneous turbulence, and both the transmit and the receive nano-devices are mobile. The mobile multiuser diffusive MC system with drift which is composed of multiple mobile transmitter nanomachines and one mobile receiver nanomachine is built in $[22]$, in which both the ISI and multiuser interference unavoidably exit in the same fluid medium. The closed-form expressions for the probabilities of detection and false alarm are derived at the cooperative and destination nanomachines considering the multiple-source interference and the ISI are obtained in $[23]$. The authors propose an adaptive etection scheme for mobile MC with a low computational complexity by utilizing the local convex propoty of the channel impulse response in $[24]$, in which the results show that the proposed scheme achieves good detection accuracy with low computational complexity. The mobile MC system is built in[25], in which tranmister and receiver move randomly in a free diffusion manner. The closed-form expressions of the mean and variance of the received signal are derived by considering two kinds of randomness.

In this work, a DF relay for mobile MC system is presented to improve the system performance in the long-distance scene. DF relay can reduce the accumulation noise. Meanwhile, D-MoSK modulation is used in the system. The novelties of this work are summarized as follows:

1. A DF MC relay scheme for long-distance communication is concerned, in which the source and destination are mobile, and the D-MoSK modulation is used to mitigate ISI and decoding complexity.

2. The corresponding SER and capacity are characterized, and the impacts of the key factors on the performance are evaluated, such as the velocity of fluid, the coefficient of molecules and so on. The obtained results are expected to provide guidance significance for the design of a practical mobile diffusive-drift MC relay system.

The remainder of this paper is organized as follows. The mobile diffusive-drift MC relay system model, including the mobile S and the mobile D, is introduced in Section II. In Section III, we will give the mathematical derivations with respect to the detection scheme. In Section IV, numerical results and performance discussions are presented. Section V concludes the paper.

II. SYSTEM MODEL

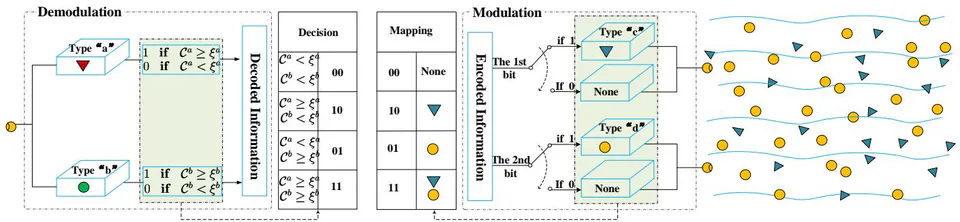

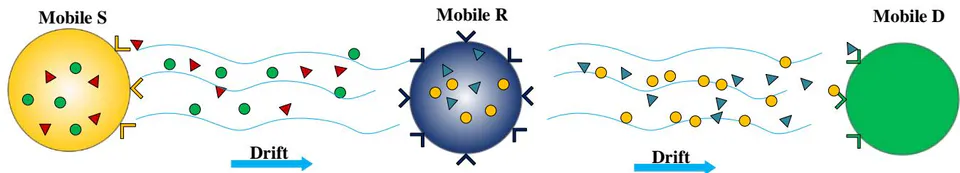

In this work, a mobile MC relay system model is built, which considers a source node, a relay node and a destination node. They are in mobility, and the fluid medium has a certain velocity. The system model is shown in Fig. 1, where S, R and D represent the information source node, the relay node and the destination node, respectively. In this system model, the depleted molecules shift keying (D-MoSK) modulation method is utilized. It uses two different types of molecules to represent Quaternary information, that is, the emission of molecules "a" represents information "10", the emission of molecules "b" represents information "01", molecules "a" and "b" simultaneously emission represents information "11", and neither molecules "a" nor molecules "b" emission represents information "00". When the information molecules drift to the R, the R detects the signal. The R decodes the information using threshold detection. When it detects that molecules "a" exceed the threshold while molecules "b" does not, it decodes the information as "10"; otherwise, it decodes the information as "01". When both molecules "a" and "b" are detected to exceed the threshold, the information is decoded as "11". When neither molecules "a" nor molecules "b" exceeds the threshold, the information is decoded as "00". The R adopts DF mode. In order to reduce the influence of ISI, the R uses different types of molecules to re-encode the decoded information. When the decoding information is "01", the R releases a constant number of molecules "c"; when the decoding information is "10", the R releases a constant number of molecules "d"; when the decoding information is "11", the R releases a constant number of molecules "c" and "d"; when the decoding information is "00", the R does not release any molecules.

Suppose that information molecules make Brownian motion in the fluid environment. That is, the information molecules have a velocity drift. The information molecules obeys the second Fick's law of diffusion [26]. At first, we consider that the S, R and D are stationary. Then we consider the processing that information from S to R. The time slot is a random variable, which means that a molecule diffusion with drift from S to R, it defined as t, following

where d0 means the distance between S and R. Additionally, V stands for the drift velocity of the fluid medium, and Dp is the diffusion coefficient for the information molecules.

Next, we investigate a practical case, where both S and R are in mobility. Under this case, assuming the molecules are

It is supposed that a molecule transmitted by S at the beginning of the first time slot and reach R after j time slots, then the probability of the molecule being captured by the R satisfies,

where Ts denotes the length of each time slot.

The D-MoSK modulation is used to modulate Quaternary information. We use two different types of molecules, namely Type "a" and Type "b". In this model, it is assumed that Type "a" and Type "b" have the same diffusion coefficients. The number of molecules captured by R at nth time slot can be expressed by

in which Ca or b[n] stands for the number of information molecules that reach R at the nth time slot. Ca or b I [n], standing for the ISI, refers to the molecules released in the previous time slots but reach R at the nth time slot. Besides, CN[n] refers to the noise.

The molecules freely diffusive and keep independence with each other, then the number of the molecules captured by R, denoted by Ca or b[n], follows the binomial distribution, it follows

where Q denotes the released molecular number by S when the input bit is "1" as shown in Fig. 2, and x[n] represents the transmitted bit by S at the nth time slot. Besides, the ISI term in (4), i.e., Ca or I (n), follows

where I denotes as the number of ISI. Generally, the influence of ISI gradually weak over time, and hence it is reasonable to assume the number of ISI is finite. Also, $x[n-i]$ represents the transmitted bit by S at the $(n-i)$ th time slot. The noise.

term in (4), i.e., $N[n]$, follows Gaussian distribution, that is $C_N[n]\sim \mathcal{N}{\mu }_{\omega }$, ${\sigma }_{\omega }^2$.

On the basis of the central limit theorem, if Ca or b is sufficiently large, the binomial distribution in Eqns. (5) and (6) will approximate to the Gaussian distribution [28]. It is found in (4) that the terms keep statistically independent, and hence the receive signal at R follows Gaussian distribution, as shown in (7), in which qi and F are defined as $qi\triangleq F(t;i+1)-F(t;i)$ and $F\triangleq F(t;1)$, respectively. The conditional probability of Ra or b[n] follows the Gaussian distribution as

Define p0 and p1 as the probabilities with respect to transmitted bit to be "0" and "1", respectively. Furtherly, we can have

in which ${\mu }_0^{aorb}$ and ${\mu }_1^{aorb}$ denote the means of Ra or b[n] with the transmitted bit to be "0" and "1", respectively. Besides, the variations of Ra or b[n] can be calculated by

The R uses decode and forward scheme, so when the signal arrives R, it will be decoded, then re-encode the decoded information. The R uses different types of molecules to transmit information. It is assumed that R uses Type "c" and Type "d" to forward information.

The number of molecules captured by D at $(n+1)$ th time slot can be expressed by

in which Cc or $d[n+1]$ stands for the number of information molecules that reach D at the $(n+1)$ th time slot. Cc or d / [n+1], standing for the ISI, refers to the molecules released in the previous time slots but reach D at the $(n+1)$ th time slot. Besides, N[n + 1] refers to the noise.

The molecules still diffusion and keep independence on each other, then the number of the molecules captured by D, denoted by Cc or $d[n+1]$, follows the binomial distribution, it follows I

where $Qc$ or $d$ denotes the released molecular number by R when the input bit is "1", and $x[n+1]$ represents the transmitted bit by R at the $(n+1)$ th time slot. Besides, the ISI term in (11), i.e., $Cc$ or $dI(n+1)$, follow

where I denotes as the number of ISI. Generally, the influence of ISI gradually weaks over time, and hence it is reasonable to assume the number of ISI is finite. Also, $x[n+1i]$ represents the transmitted bit by R at the $(n+1i)$ th time slot. The noise term in (11), i.e., $N[n+1]$, follows Gaussian distribution, that is $N[n+1]\sim \mathcal{N}({\mu }_{\omega },{\sigma }_{\omega }^2)$.

Then the information diffusion follows same distribution from R to D, the mean and variance are calculated in the same way as from S to R. According to Eqns. (9) and (10), the corresponding parameters can be changed to calculate.

III. SIGNAL DETECTION AND DATA DECODING

The maximum likelihood (ML) detection method is used in signal detection at R, and the likelihood ratio test (LRT) scheme satisfies

where H0 and H1 represent the ML conditions. So the detection threshold function follows

in which $f(0{)}_{\xi }(\xi )$ and $f_{\xi }^{(1)}(\xi )$ represent the probability density function (PDF) of $\xi$ in terms of H0 and H1, respectively, defined as

According to Eqns. (15) and (16), we can get the likelihood-ratio function,

It is assumed that the transmission of "0" and "1" are equal probability, let $\lambda (\xi )=1$, and we can have,

Then, according to calculate we can get the conclusion which is shown in (19). Furtherly, the detection threshold, i.e., _, can be calculated by where A, B and C are defined as

Using the transfer probability, the symbol error rate (SER) of from S to R is derived by (21), in which $Q(\mathrm{\_})$ refers to the well-known Q-function.

Then, the SER of from R to D is derived by (22). So the BER of from S to D can be calculated as

Based upon Shannon's information theory, the channel capacity is defined as the maximum of the mutual information, which is denoted by $I(X;Y)$, between the transmitted symbol $X$ and the received symbol $Y$. Let $Xn$ represent the signal transmitted by $S$ in the $n$ th time slot, and $Yn$ represent the signal received by $R$ at the $n$ th time slot. Thus, the channel capacity of from $S$ to $R$ can be expressed by

The mutual information can be calculated by (25), where $px=\mathrm{Pr}(Xn=x)$ and $\mathrm{Pr}(Yn=yjXn=x)$ refer to the priori probability and conditional probability, respectively.

while the channel capacity of from R to D can be expressed by

in which $Xn+1$ represent the signal transmitted by R in the $(n+1)$ th time slot, and $Yn+1$ represent the signal received by D at the $(n+1)$ th time slot.

So all the channel capacity of from S to D is expressed as

IV. NUMERICAL RESULTS AND PERFORMANCE ANALYSIS

In this section, the numerical results in (23) to evaluate the SER performance of D-MoSK modulation in a mobile diffusive-drift DF communication system are presented. The parameters used in the evaluations are summarized in Table I.

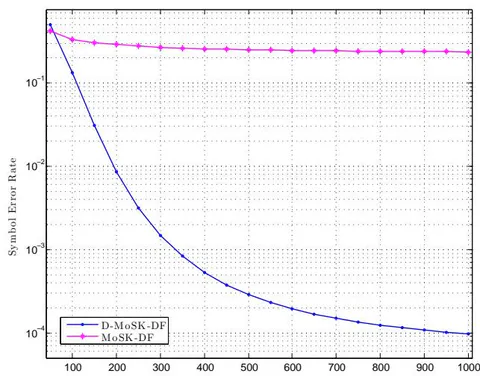

It can be found in Fig. 3 that D-MoSK exhibits a much better SER performance than MoSK in the decode-and-forward communication system. Here we need to point out that the D-MoSK modulation employs much fewer molecular types than MoSK modulation. Thus, the D-MoSK modulation is considered to have the capability to reduce the decoding complexity, as well as the hardware complexity. In this work, we use the number of molecular types that the R and D need to identify to evaluate the decoding complexity. Take the quaternary modulation as an example. For MoSK, the D needs to identify four types of molecules; while for D-MoSK, the D only needs to identify two types of molecules. For general comparisons, we investigate the ratio of decoding complexity between MoSK and D-MoSK, that is $M=\log 2M$, in which $M$ stands for the modulation order. It can be accessible that along with the increase of modulation order, the advantage of D-MoSK modulation in terms of complexity performance will become more evident. Also, as mentioned above, four types of molecules are needed for quaternary MoSK modulation to form a symbol; while only two types are needed for quaternary D-MoSK modulation. Assume that S can release Q molecules within a bit time. For the MoSK modulation, the number of released molecules is $nMoSK=4\times 2\times Q$. For the D-MoSK modulation, the number of released molecules is $nD-MoSK=2\times 2\times Q$. We can conclude that for the quaternary modulation, the number of molecules released in D-MoSK is half of that for MoSK.

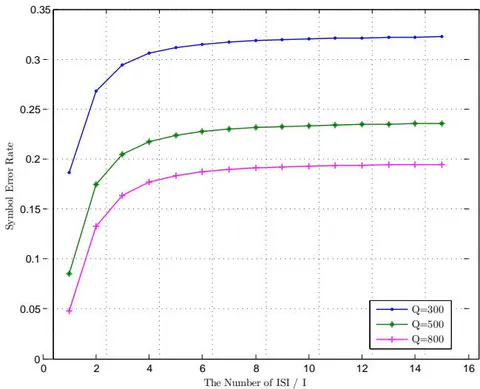

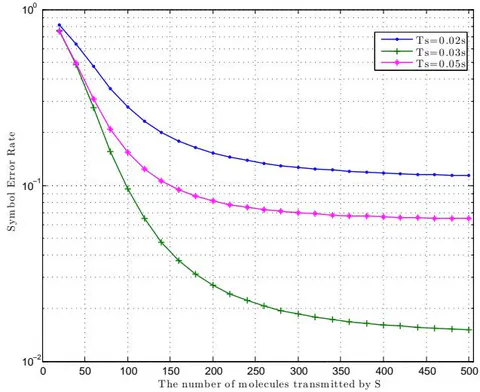

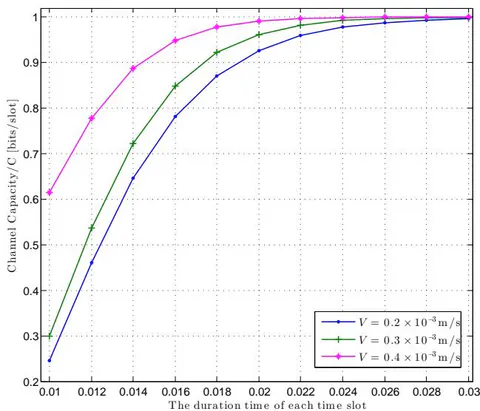

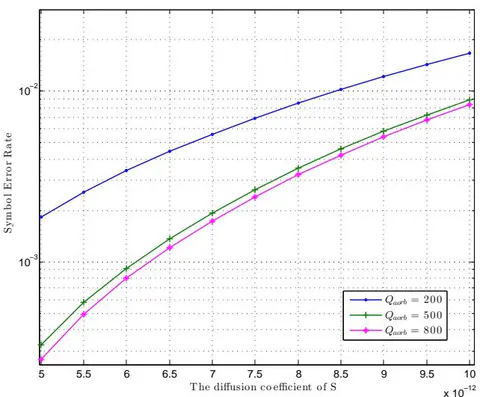

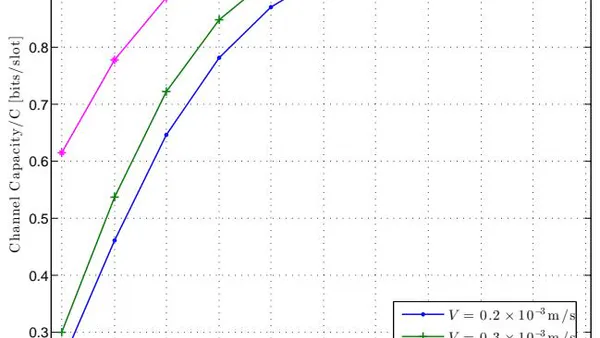

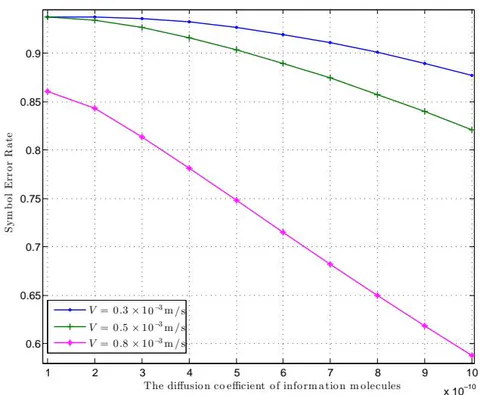

In Fig. 4, we investigate the SER performances versus of the ISI length with different Q. From Fig. 4, we can find that SER curves go up along with the ISI length increases. The ISI refers to the information molecules transmitted by the previous time slot arrive in the current time slot. As can be seen from Fig.4, the closer the slot is to the current slot, the greater the impact of ISI. With the increase of time slot distance, the influence of ISI is smaller. When the length of ISI in more than 10, the influence on the system is basically unchanged. That is to say, the current time slot will be affected within 10 slots before the current time slot. In addition, the impact of ISI on the current time slot can be ignored. Therefore, the length of ISI is set to 10 in this paper.
