Thermal Stress Analysis of BGA Packaging Structure

Tasneem Khan Shifa; Dr. Md. Faruque Hossain

Thermal Stress Analysis of BGA Packaging Structure

Tasneem Khan Shifa * §

Contact

Dr. Md. Faruque Hossain

Contact

§ Khulna University of Engineering & Technology

Thermal Stress Analysis of BGA Packaging Structure

Article Fingerprint

ReserarchID

REJTSD8

Thermal Stress Analysis of BGA Packaging Structure Banner

AI TAKEAWAY

Connecting with the Eternal Ground

Abstract

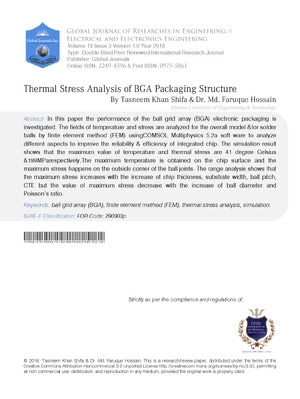

In this paper the performance of the ball grid array (BGA) electronic packaging is investigated. The fields of temperature and stress are analyzed for the overall model &for solder balls by finite element method (FEM) usingCOMSOL Multiphysics 5.2a soft ware to analyze different aspects to improve the reliability & efficiency of integrated chip. The simulation result shows that the maximum value of temperature and thermal stress are 41 degree Celsius &199MParespectively.The maximum temperature is obtained on the chip surface and the maximum stress happens on the outside corner of the ball joints. The range analysis shows that the maximum stress increases with the increase of chip thickness, substrate width, ball pitch, CTE but the value of maximum stress decrease with the increase of ball diameter and Poisson’s ratio.
