I. INTRODUCTION

In the outer halo parts of most galaxies exist gas clouds abundantly. Although stars are very sparse there, the halo is dominated by rarely observable gas-clouds. Actually, considerable portion of total mass of the galaxy exists there. In addition, speeds of their orbital motion are very high of the order of $200\sim 300\mathrm{km}\cdot {\mathrm{s}}^{-1}$, and the gas clouds distribute over huge spatial scales. The dynamical motion of such space-fluids is likely governed by a new mechanism. Study of the motion and dynamics of such an exotic fluid should be approached in an innovative way.

port Recently, McGaugh et al. [1] discovered a notable dynamical and mathematical facet of rotationally sup- ported galaxies, on the basis of their observational studies on hundreds of galaxies with different morphology, masses, sizes and gas fractions, They found a universal law, implying that the rotational motions of disk galaxies are determined entirely (in a statistical sense) by the baryonic (hence visible) matters in the galaxies, even if the disks are filled with unknown dark matters. This hints strong connection between the observable baryonic matters and the physics producing the galactic orbital motions.

Let us take a typical galaxy supported by rotation. From the orbital velocity $V(R)$ observed at a distance $R$ from the galactic center, its centripetal acceleration $A_c$ (radial acceleration to the galactic center) is given by

On the other hand, the gravitational potential ${\mathrm{\Phi }}_g$ is estimated by the Poisson equation for ${\mathrm{\Phi }}_g$: ${\mathrm{\nabla }}^2{\mathrm{\Phi }}_g=4\pi G{\rho }_{\mathrm{bar}}$

once the baryonic mass density ${\rho }_{\mathrm{bar}}$ is given as a function of position from observation of the galaxy. Using the potential ${\mathrm{\Phi }}_g$ found from the equation, the absolute value of gravitational acceleration $A_g$ is given by

toward the gravity center. McGaugh et al. [1] succeeded in extracting a fitting curve from observations which connects average values of $A_c$ and $A_g$, expressed as

where $A_{†}\approx 1.20\times {10}^{-10}{\mathrm{ms}}^{-2}$

The functional relation (3) implies strong connection between the baryonic gravity acceleration $A_g$ and the physics that generates the observed $A_c$. Observations show in general, leading to the following $A_{\mathrm{DM}}$:

A_{c} - A_{g} = A_{\mathrm{DM}}\(> 0).

Non-zero $A_{\mathrm{DM}}$ is regarded as the dark matter effect.

In the solar system, a rough estimate for the Earth (at $R=1au$ from Sun) or the Neptune gives, respectively, $A_g^E\approx 6\times {10}^{-3}{\mathrm{ms}}^{-2}$, or $A_g^N\approx 6\times {10}^{-6}{\mathrm{ms}}^{-2}$. Both are much larger than $A_{†}$, implying $A_c\approx A_g$ in the solar system. However, further outward, the Oort clouds are known and thought to occupy a vast space somewhere between the distance of order ${10}^{3}au$ from the Sun to as far out as $50\times {10}^{3}au$ (0.79 ly) or even further out. At a representative position $R_O=0.9\times {10}^{4}au$ within the Oort cloud, one estimates $A_g^O\approx 1.2\times {10}^{-11}{\mathrm{ms}}^{-2}$ which is smaller than $A_{†}$ by ${10}^{-1}$. The curve (3) predicts significant deviation of $A_c$ from $A_g$ there, and a dark matter effect is expected present in case of galactic halos.

The present paper is an effort to clarify how the term $A_{\mathrm{DM}}$ is accounted for with a physical mechanism.

II. TULLY-FISCHER LAW, IMPLIED BY THE FITTING CURVE

The rotation curve $V(R)$ of galactic orbital motion keeps high values at large distances $R$ from the gravity center and becomes nearly flat instead of falling. This was recognized as early as the 1950s [2]. Later, it was updated from observation by the law, Tully-Fischer relation [3]: $M_{bar}\propto (v_H{)}^p$ with $p=3.5\sim 4$, even in the case of presence of dark matter, where $M_{bar}$ is the total baryonic mass of the galaxy and $v_H$ the hydrogen atomic velocity at outer halo part of a galaxy. Observed values of $v_H$ are very high, of the order of $200\sim 300\mathrm{km}\cdot {\mathrm{s}}^{-1}$.

The law (3) says how the centripetal acceleration $A_c$ is related to the gravitational acceleration $A_g$. Looking at the lower end of the $A_g$ value, the behavior of the curve is found to be consistent with the Tully-Fischer relation. Assuming $|A_g/A_{†}|\ll 1$, its right-hand side is given ap proximately by $(A_g{A}_{†}{)}^{1/2}$. Using $A_c\equiv (v_H{)}^2/R$ and $A_g\propto M_{bar}/R^2$ as $R^{-1}\to 0$, the fitting curve (3) implies $M_{bar}\propto (v_H{)}^4$, consistent with the Tully-Fischer relation. Mysteriously, the gas velocity $v_H$ at the outer halo is determined by the magnitude of whole baryonic mass $M_{bar}$ only. It appears that internal detailed distribution of luminous masses does not influence on the global dynamics determining $v_H$. The Hydrogen atoms seem to be telling a mystery from the cosmic space.

III. THEORY

To investigate such an exotic space fluid, the physical approach to be taken should be innovative. Observed speeds of gas clouds in the galaxy halos are very high, and the space fluids are distributed over a huge spatial scales of tens of kpc where the space is slightly curved under the gravity. The motion and dynamics of such a fluid should be studied with a renewed approach.

a) Gravity-space Fluid Dynamics and equations

Theory of fluid mechanics in flat space is extended to that in curved space with gravity. At the same time the flow filed is strengthened by a new theory [4], which extends the isotropic pressure field to general anisotropic stress field. This extension is carried out by incorporating the fluid gauge theory (FGT in short, summarized in Appendix A). This theory reinforces the flow fields by introducing a background gauge field $a_{\nu }$ ( $\nu =0,1,2,3$, by 4-d spacetime notation). The field $a_{\nu }$ is dark since it is a background field. The flow field is strengthened in two aspects. The gauge field not only ensures the mass conservation of fluid flows [5], but also assists the flow field to become receptive to more complex fields. This is enabled by the transition of its stress field ${\sigma }_{jk}$ from the simple isotropic pressure $p{\delta }_{jk}$ valid in quiet states of slow motion to more general anisotropic stress field $M_{jk}$ functioning in turbulent flow states. See the note [6] for its explanation by analogy. No energy dissipation is caused by the addition of the gauge field within the combined system of flow field and gauge field (see Kambe [5], §5). This improvement enables appropriate description for turbulent high-speed motions within galactic halo space.

Weak field form of equation of motion: Following the scenario of general relativity faithfully, the recent study [7] has succeeded in deriving the equations of Gravity-space Fluid Dynamics by incorporating the FGT terms into the equation of fluid motion in curved space.

Its weak field form is represented by

(from §5 of Kambe [7]), where ${\hat{\mathrm{\nabla }}}_{t}vv$ denotes the relativistic covariant derivative of the fluid velocity $vv$ with respect to time $t$ in the curved space of gravity field ${\mathrm{\Phi }}_g$, and ${\mathrm{D}}_t={\partial }_t+vv\cdot \mathrm{\nabla }$ with $\mathrm{\nabla }=({\partial }_i)$ $i=1,2,3$. See the note [8] for the significance of the terms $(vv\cdot \mathrm{\nabla })vv$ and $\mathrm{\nabla }{\mathrm{\Phi }}_g$ of the last expression of (6).

Using the 3-space notation $aa=(a_1,a_2,a_3)$, the 4-gauge-field $a_{\nu }$ is rewritten in the form $(\varphi ,aa)$. Then we introduce new 3-vectors, $bb$ and $ee$, by

where $bb$ and $ee$ constitute a pair of fluid Maxwell fields: fluid magnetic vector $bb$ and electric vector $ee$.

On the right-hand side of (5), the term $\mathrm{\nabla }\mathcal{P}$ is expressed by $\rho \mathrm{\nabla }h$ in dissipation-free motions [9]. Substituting the relation $\mathrm{\nabla }\mathcal{P}=\rho \mathrm{\nabla }h$ on the right-hand side of (5), it is seen that all the terms of (5) are multiplied by the density $\rho$. Hence, the factor $\rho$ can be eliminated at all the terms in (5). Using (6), the equation (5) reduces to

where ${\hat{\mathrm{\Phi }}}_g\equiv {\mathrm{\Phi }}_g+h+{\varphi }_a$, with $\mathrm{\nabla }h$ and $\mathrm{\nabla }{\varphi }_a$ absorbed to the gravity term $\mathrm{\nabla }{\mathrm{\Phi }}_g$ as negligibly small contributions. The last term $vv\times bb$ of (8) is the fluid Lorentz-force deduced from the anisotropic stress field $M_{jk}$ (analogous to the electromagnetic Maxwell stress).

Note that the equation (8) represents a balance among four different kinds of acceleration. The advantage of such representation will be utilized in the present investigation of the dark matter issue below. In fact, the study of McGaugh et al. [1] is presented with this approach, i.e. a balance relation among different kinds of acceleration.

b) Dynamical balance within a disk galaxy

Let us consider a particular disk-galaxy, which is rotating around the center in steady-state, so we have ${\partial }_{t}vv=0$ in (6) and ${\partial }_{t}aa=0$ in (8). The galaxy is keeping its axisymmetric form and represented with cylindrical polar coordinates $(Z,R,\varphi )$, where the plane $Z=0$ coincides with the disk and described with the polar coordinates $(R,\varphi )$. The galaxy center is at $R=0$. Here we assume that its rotating motion is represented by the following particular axisymmetric fields: $vv=(0,0,V(R))$ and $aa=(0,0,A(R))$.

The radial component of ${\mathrm{D}}_{t}vv$ in (8) is given by $({\mathrm{D}}_{t}vv{)}_R=((vv\cdot \mathrm{\nabla })vv{)}_R=-V^2/R$. For steady axisymmetric motion, the radial component of the equation (8) is now expressed with three terms on the plane $Z=0$:

which represents balance among the three main terms: centripetal acceleration $-V^2/R$, gravitational acceleration $-{\partial }_R{\mathrm{\Phi }}_g$, and the Lorentz acceleration $(vv\times bb{)}_R$, all toward the center, where the variables are governed by:

Note that a field parameter ${\mu }_{\mathrm{F}}$ is introduced in (12). We will see below that it plays an important role in the galaxy dynamics. It is of significance to recognize that the equation (9) expresses the same relation as the equation (4) if the signatures of all three terms are reversed. Namely, the equation (9) is just another expression of the equation $A_c-A_g=A_{\mathrm{DM}}$ of (4).

This recognition encourages to define the background gauge field term $A_{\mathrm{BF}}\equiv |(vv\times bb{)}_R|$ as the agent which bridges the observational gap between $A_c$ and $A_g$. Thus we find the following expression:

predicting that the representation (13) fills the gap between the two observational values $A_c=V^2/R$ and $A_g=|\partial {\mathrm{\Phi }}_g/\partial R|$.

What is implied by (13) has a profound significance. In fact it is astonishing. Firstly, the following section IV will present the evidence that the above formulation is successful and show that the curve (3) obtained from observations can be reproduced by the present theory. Namely, the theory predicts bridging of the observational gap between $A_c$ and $A_g$. This alone is innovative enough. However, another point to be given later is much more fundamental from the physics point of view (see §V).

IV. COMPARISON BETWEEN OBSERVATION AND THEORY

Now we have arrived at the stage of comparison between the observational triplet $[A_c,A_g,A_{\mathrm{DM}}]$ estimated by the curve (3) and the new theoretical triplet $[A_{\mathrm{obs}},A_{\mathrm{grav}},A_{\mathrm{BF}}]$ estimated according to the present formulation, where

where $\mathrm{\Psi }\equiv RA$. See (11) for the last term $A_{\mathrm{BF}}$.

The computation starts from the initial condition that the rotation curve $V=V(R)$ is given by the observations, on every galaxy investigated. Hence we have $A_c\equiv A_{\mathrm{obs}}$. See §VD for the details of computation.

Regarding the numerical estimations, four sample galaxies are chosen: NGC3198, NGC7814, NGC6503 and

NGC3741. The first NGC3198 is an example galaxy to show how the comparisons are carried out. Remaining three are chosen as representative galaxies to show different structure and morphology. Present numerical estimates will disclose amazing dynamical features of galaxies and the function of fluids in galactic space.

Theoretical base of the comparison is the equation (9) derived from the Gravity-space Fluid Dynamics (5).

a) An

The NGC 3198 (Figur 1) is a barred spiral galaxy in the constellation Ursa Major approximately 47 million light years away. NGC 3198 is located in the Leo Spur, which is part of the Virgo Supercluster,

Figure 2 shows the rotation velocity of the galaxy NGC 3198 along the radial distance $R$ (kpc) from its center (1 kpc = 3.1 × 10 ${}^{19}$ m). The curve marked with $d$ is the one of observed velocity (km/s), while the curve $f$ denotes the velocity obtained from the computed gravitational potential ${\mathrm{\Phi }}_g(R)$, and the curve $e$ denotes the velocity estimated theoretically from the fluid Lorentz acceleration $|(vv\times bb{)}_R|=V{R}^{-1}|{\partial }_R(RA)|$ from (11). The last was derived from the anisotropic stress term through the background gauge field $aa=(0,0,A(R))$. It is seen in the

diagram that the curve $e$ tends to the observed velocity $d$ as $R$ approaches 32 kpc. This is what is currently known as the dark matter effect. However, the present theory captures it by the term |(oldsymbol{v} \times oldsymbol{b})_R|.

Successful aspect of the present study can be seen in the diagram of Figure 3, where the data points $(A_{\mathrm{grav}},A_{\mathrm{obs}})$ computed from NGC3198 (Fig.2) are given with the blue points of $c$. The points $c$ overlap quite well with the curve $a$, although certain minor undulation is seen relative to the curve $a$. The undulation may signal that the parameter ${\mu }_{\mathrm{F}}$ of (12) is not a strict constant but a scalar function depending slightly on domains.

Present agreement between astronomical observation and theoretical analysis is really notable. In fact, the fitting curve $A_c=\mathcal{F}(A_g)$ of (3) was found by McGaugh, Lelli & Schombert [1] from observational data. They ex

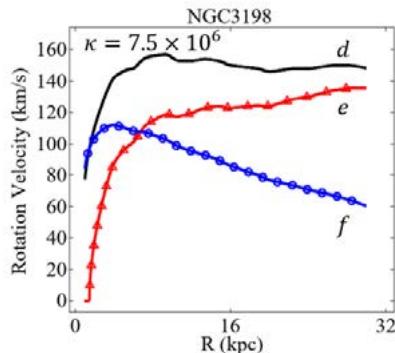

Fig. 2: NGC3198: Distributions of rotation velocities with respect to $R$ with the unit $\mathrm{kpc}=3.1\times {10}^{19}\mathrm{m}$, where $d$ is the observed velocity $V_d$, while $e$ and $f$ are velocities $V_e$ and $V_f$ respectively estimated theoretically from $V_e=\sqrt{R{A}_{\mathrm{BF}}}$ (from fluid Lorentz acceleration) and $V_f=\sqrt{R{A}_{\mathrm{grav}}}$ (from gravitational acceleration). It is seen: $V_d^2\approx V_e^2+V_f^2$. The velocity data were obtained with $\kappa =7.5\times {10}^6$.

tracted the curve from a set of about two hundred. Hence the diagram plot of $(A_{\mathrm{g}},A_{\mathrm{c}})$ such as Fig.3 is called the "MLS-plot" in the present paper. An equivalent fitting curve was confirmed by Sofue [10](and private communication) from the observation data of about five hundred of galaxies.

The agreement between observation and theory tells that a new physics is working by the action of the background gauge field $aa$, which is excited by the high-speed current field $\rho vv$ of the space fluid. Typical magnitudes of the velocity $|vv|$ are observed to take values of order ${10}^2\mathrm{km}/\sec$ at most halos of galaxies.

b) Three Representative types of Galaxies

Three sample galaxies are examined here: NGC7814, NGC6503 and NGC3741, representing different structure and morphology: Bulge-dominated, Disk-dominated, and Gas-dominated (according to [1]). Present numerical estimates will in fact show that the three galaxies are characterized with different values of the dimensionless index parameter $\kappa$ defined by the equation (29).

In §VE given below, it is seen that a dimensionless parameter $\kappa \propto {\mu }_{\mathrm{F}}/G$ plays a role of an index characterizing relative importance of the fluid current flux $\rho vv$ to the gravity effect ${\partial }_R{\mathrm{\Phi }}_g$.

(I) NGC7814 (Bulge-dominated spiral):

NGC7814 (Figure 4) is a spiral galaxy about 40 million light-years away in the constellation Pegasus. It has a bright central bulge and a bright halo of glowing gas extending outwards into space. (Also known as the little sombrero.) The cloud-rich spiral arms appear as dark streaks. They consist of gas clouds that absorb and block light from the galactic disk behind it. The view of this NASA/ESA HST image would be impressive even without NGC 7814 in front; nearly all the objects seen in this image are galaxies as well.

To compare with the observed finding represented by the fitting curve (3), computational study has been carried out on this galaxy by using the system of equations (9) and $(10)\sim (12)$. The results are given by a pair of diagrams, one analogous to Fig.3 of MLS-plot and the other analogous to Fig.2 for velocity curves. Those are shown in the Figure 7 by the leftmost diagrams of both upper and lower arrays (rows) noted with NGC7814 where the parameter $\kappa$ was $1.5\times {10}^6$.

Remarkably, the data points $c$ of Galaxy NGC7814 overlap quite well with the fitting curve $a$, amazingly, the range of $R$ examined being 8, 20.

(II) NGC6503 (Disk-dominated spiral):

The galaxy NGC 6503 (Figure 5) lies about 18 million light-years away at the edge of an empty patch of space called the Local Void. The dwarf galaxy spans 30,000 light-years and lies in the constellation of the Dragon.

To compare with the curve (3), a computational study was carried out by using the system of equations $(9)\sim$ (12). The results are given by a pair of diagrams, shown in the Figure 7 by the central diagrams of both upper and lower arrays (rows) noted with NGC6503 where the parameter $\kappa$ was $1.9\times {10}^7$ which is larger than the previous value of NGC7814.

Agreement with the fitting curve $a$ is excellent, the range of $R$ examined being 8, 22.

(III) NGC3741 (Gas-dominated faint-spiral):

The NGC 3741 (Figure 6) is an unusual galaxy in several aspects. It has a disk of neutral hydrogen (HI) that is extremely wide, extending some 23,000 light-years (7 kpc). NGC 3741 is a galaxy in the constellation Ursa Major, located at a distance of about 10 million light-years (3.2 Mpc). It is relatively undisturbed by other galaxies. The disk is symmetrically warped. Since a mass-to-light ratio is $M_T/L_B\sim 149$, it is considered to be highly rich in dark matter (dark space clouds).

A computational study was done and compared with the fitting curve. The results are given by a pair of diagrams, shown in Figure 7 by the rightmost diagrams of both upper and lower arrays (rows) noted with NGC3741 where the parameter $\kappa$ was $3.7\times {10}^8$ which is larger than the previous values of NGC7814 and NGC6503.

The left part of the data points $c$ overlaps with the fitting curve $a$, while the right part tends to the line $b$ (where $A_c=A_g$ ). The range of $R$ examined is 1, 6. The left end corresponds to the outer part $R=$

6 (kpc), while the right part tends to the inner part. The right part implies that the inner part of the galaxy NGC3741 deviates from standard galaxies, hinting that NGC3741 may be an immature galaxy.

All the planets of the Solar system drop on the line $b$ (i.e. $A_c=A_g$ ). Hence, no dark matter issue has been raised in the Solar system.

Following subsection C. summarises the above three galaxies, concerning what is implied by the difference of the index parameter value $\kappa$.

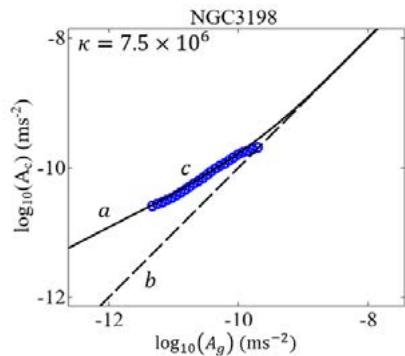

Fig. 3: MLS-plot (the lines $a$ and $b$ ), overlapped with the blue data points $c$ of Galaxy NGC3198. The ordinate is ${\log }_{10}(A_c)$ and the abscissa ${\log }_{10}(A_g)$ with the unit ${\mathrm{m}/\mathrm{s}}^2$ for both $A_{\mathrm{obs}}=A_c$ and $A_{\mathrm{grav}}=A_g$. Curve $a$: $A_c=\mathcal{F}(A_g)$ of (3); Line $b$: $A_c=A_g$; Blue data points $c$: $R=[1,30]$ kpc with the right end at $R=1$ kpc and the left end at $R=30$ kpc.

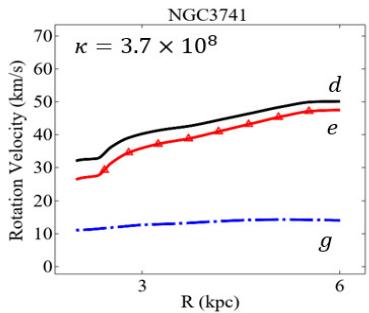

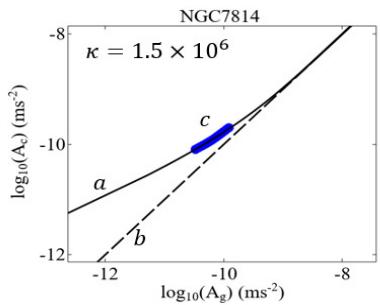

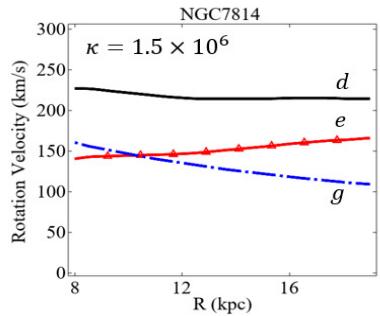

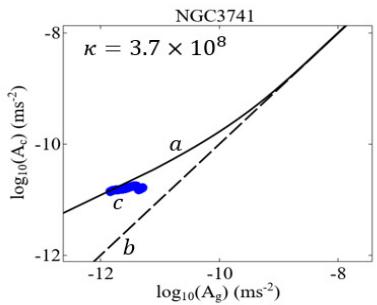

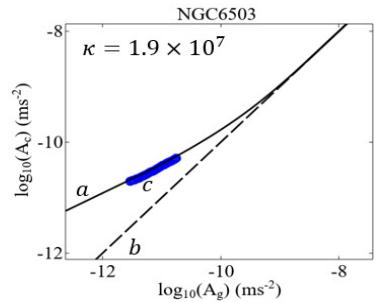

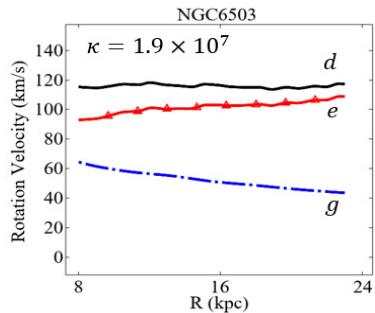

Fig. 7: Upper Diagrams: The MLS-plot for NGC7814, NGC 6503, and NGC3741 from the left, where the curves labeled with $a$ and $b$ are the same as those of Lower Diagrams: Distributions of rotation velocities vs. the radial distance $R$, where the label $d$ denotes the observed velocity $V_d$, while the label $e$ denotes the velocity $V_e$ estimated from $V_e=\sqrt{R{A}_{\mathrm{DM}}}$ (from the fluid Lorentz acceleration) as of Fig.2, and the label $g$ denotes the velocity $V_g$ given by McGaugh et al. [1] as the baryonic mass model. It is seen: $V_d^2\approx V_e^2+V_g^2$. The numerical data of the present work were obtained with $\kappa =1.5\times {10}^6$ (NGC7814), $1.9\times {10}^7$ (NGC6503) and $3.7\times {10}^8$ (NGC3741).

c) What is Implied from Three Types of Morphology

The three galaxies NGC7814, NGC6503 and NGC3741 examined in the previous $\mathbf{B}$ were chosen by the difference of morphology and structure gained from astronomical observations. By the present computation analyses, it is remarkable to find that the difference is evidenced by numerical values of a dimensionless parameter $\kappa$ defined in the next §V. Namely, as given in the Table I, the three galaxies are characterized in the order of magnitude of $\kappa$: $O({10}^6)$ for NGC7814 (a bulge-dominated spiral); $O({10}^7)$ for NGC6503 (a disk-dominated spiral), and $O({10}^8)$ for NGC3741 (gas-dominated faint-spiral).

	NGC7814	NGC6503	NGC3741	NGC3198
κ	1.5 × 106	1.9 × 107	3.7 × 108	7.5 × 106

V. DETAILS OF THEORY & COMPUTATION

a) How the Gauge Field is Excited

The mathematical advantage of the present theory is the equation (9) giving the term $A_{\mathrm{DM}}$ the expression $-(vv\times bb{)}_R$ explicitly where the term $bb=\mathrm{\nabla }\times aa$ depends on the FGT gauge field $aa$. By the equation (12), the field $aa$ is determined by $\mathrm{\nabla }\times (\mathrm{\nabla }\times aa)={\mu }_{\mathrm{F}}\rho vv$, where the right-hand source term depends on the fluid current density $J_{\mathrm{F}}\equiv \rho vv$. In addition, the forcing is controlled by the parameter ${\mu }_{\mathrm{F}}$. This is an innovative point.

b) Significance of the Theory

Present fluid gauge theory for a perfect fluid represents a broader class of flow fields than the current Eulerian field by incorporating the background field $aa$, and covers a broader family of flow fields of a perfect fluid.

In the presence of the gauge field $aa$, the governing equation was given by (8), which is rewritten here again,

Note that this includes the Lorentz-type acceleration $vv\times$

$bb$ in fluid flows which is neutral electrically. The role of charge density is played by the mass density $\rho$ here.

c) Fluid Lorentz Acceleration $v\times b$

The equation (16) shows that the fluid Lorentz acceleration $vv\times bb$ depends on the velocity $vv$, acting perpendicularly to the 3-vector $vv$. This is contrasted with the gravity acceleration which is directed to the gradient of a scalar potential function ${\mathrm{\Phi }}_g$ (but the direction reversed). In this sense, the action of $vv\times bb$ is twisted to the perpendicular direction, unlike the parallel action of $\mathrm{\nabla }{\mathrm{\Phi }}_g$.

It is helpful to remember the case of Kundt-tube experiment [7, 11] to get an insight into the action of the gauge field $aa$. "The gauge field within the Kundt-tube is not visible, yet creates visible dust-striations mechanically". This insight applies analogously not only to the present gauge field $aa$, but also to the gravitational potential ${\mathrm{\Phi }}_g$ as well. The gauge field $aa$ (the gravitational potential ${\mathrm{\Phi }}_g$ ) is not visible, yet the action of $vv\times bb$ (of $\mathrm{\nabla }{\mathrm{\Phi }}_g$ ) creates a visible dynamical effect.

In addition, the acceleration ${\widehat{ff}}_a$ on the right-hand side depends on the time derivative ${\partial }_{t}aa$ and rotational term $bb=\mathrm{\nabla }\times aa$. Hence the ${\widehat{ff}}_a$ would become significant in turbulent flow fields that are time-dependent and rotational. The fluid acceleration $-\mathrm{\nabla }(h+{\varphi }_a)+{\widehat{ff}}_a$ (in addition to the gravity acceleration $-\mathrm{\nabla }{\mathrm{\Phi }}_g$ ) is regarded as a generalization of the pressure force $-\mathrm{\nabla }p$,

d) Computation Scheme of the Present Study

When we try to study the physics and dynamics of galaxy rotations, reliable astronomical laws or equations are not so many. Fortunately, we have two laws, which can be used in the present study of galaxy rotation and dark matter issue. In addition nowadays, rotation curves $V=V(R)$ are available for hundreds of galaxies (e.g. McGaugh et al. [1], Sofue [10]). In our study under the assumption of steady rotation of axisymmetric galaxies, the velocity $vv$ and gauge field $aa$ are represented by $vv=(0,0,V(R))$ and $aa=(0,0,A(R))$ respectively in the cylindrical polar coordinates $(Z,R,\varphi )$.

The computation scheme is summarized here with the following ten items: $(\mathbf{a})\sim (\mathbf{j})$

(a) The first one is the MLS-plot and the associated fitting curve (3) cited here again as

which was extracted as a mean curve from extensive observational data acquired by McGaugh et al. [1].

(b) Second one is the equation (9) representing the dynamical balance of a rotating disk of a galaxy in axisymmetric steady state (Kambe [7]), which is the balance of radial accelerations to the center on the disk $Z=0$:

where (11) is used on the right-hand side with $\mathrm{\Psi }\equiv RA$.

(c) Third one is the given rotation curve of each galaxy:

([1], [10], [12]). The observed curve $V(R)$ gives the initial condition to start the computation. Hence, the first term $V(R{)}^2/R$ of (18) is known for subsequent computations.

(d) Fourth: The equation (18) includes two field variables ${\mathrm{\Phi }}_g$ and $\mathrm{\Psi }=RA$, governed by (10) and (12):

where the left-hand side of (21) is equal to $-(\mathrm{\nabla }\times bb{)}_{\varphi }$ Regarding $(\mathrm{\nabla }\times bb{)}_{\varphi }$, see the note [13].

(e) Fifth: Density distribution $\rho (Z,R)$ is assumed to decay rapidly to the $Z$ -direction normal to the disk plane $Z=0$. For simplicity, the density is defined with an exponential $Z$ -factor as

where $\mathrm{\Delta }$ is a scale-constant, and $n=4$ was chosen since this worked better than $n=2$ [14].

(f) Sixth: Other field variables are represented by using the normal distribution (22) as

${\mathrm{\Phi }}_g(Z,R)=h_4(Z){\mathrm{\Phi }}_{\ast }(R),{\mathrm{\Psi }}_g(Z,R=h_4(Z){\mathrm{\Psi }}_{\ast }(R),$ $\varphi$ -current flux: $J(Z,R)\equiv \rho V=h_4(Z){\rho }_{\ast }(R)V(R)$ (23 on account of the linearity of the differential operators on the left-hand side of (20) and (21).

Owing to the normal function $h_4(Z)$, the terms ${\partial }_Z^2{\mathrm{\Phi }}_g$ and ${\partial }_Z^2\mathrm{\Psi }$ vanish on the disk plane $Z=0$ (Appendix B). Hence the system of equations of (20) and (21) reduces to the one-dimensional problem with respect to $R$, since the factor $h_4(Z)$ can be eliminated from the system.

Selecting a galaxy for the target of analysis, the above system of equations (17) $\sim$ (23) are solved numerically.

(g) Boundary conditions: First, the radial section of $R$ is chosen: $[R_1,R_2]$ with .

Since the present study is interested in investigating the halo, the $R_2$ -value is chosen within the halo. Then we have $V_2=V(R_2)$ from (19) and $A_c(R_2)=V_2^2/R_2$. The last yields $A_g(R_2)={\mathcal{F}}^{-1}[A_c(R_2)]$ from (17). Then

from (18). Arbitrariness of $\mathrm{\Psi }$ is fixed by $\mathrm{\Psi }(R_1)=0$.

(h) Preparation of dimensionless equation for computation: The equations (20) and (21) are solved on the disk plane $Z=0$, under the conditions (18) and (19) and also with ${\partial }_Z^2{\mathrm{\Phi }}_g=0$ and ${\partial }_Z^2\mathrm{\Psi }=0$.

By the help of the equation (18), the system of equations (20) and (21) are reduced to a single equation. To derive it, consider (20) and (18):

Eliminating the term ${\partial }_R{\mathrm{\Phi }}_g$ between (25) and (26),

The left-hand side of (27) represents the source of gravity $S_G=4\pi G{\rho }_{\ast }(R)$, while the right-hand side of (21) represents the strength $S_L={\mu }_{\mathrm{F}}{\rho }_{\ast }RV$ exciting the potential $\mathrm{\Psi }$ (equivalently the fluid Lorentz force). Eliminating ${\rho }_{\ast }$ between (27) and (21):

Introducing dimension-less variables $V_{\ast }\equiv V/c$, $R_{\ast }\equiv R/L$, and ${\mathrm{\Psi }}_{\ast }\equiv \mathrm{\Psi }/(cL)$ with $L$ a scale of the galaxy. the equation (28) is converted to a dimensionless form:

This is a second order (ordinary) differential equation with the dimension-less parameter $\kappa$.

This equation describes the mechanism of how the gauge potential ${\mathrm{\Psi }}_{\ast }$ is excited by the rotation velocity $V_{\ast }(R)$ of the galaxy. The degree of excitation is controlled by the dimension-less parameter $\kappa =c^2({\mu }_{\mathrm{F}}/4\pi G)$, proportional to the ratio ${\mu }_{\mathrm{F}}/G$, signifying relative strength of two excitations with ${\mu }_{\mathrm{F}}$ denoting excitation by current flux $\rho V$ (see (21)) and $G$ the symbol of gravity excitation.

(i) Finite element algorithm: The equation(30) is solved by the finite-element method, choosing an appropriate value for the parameter $\kappa$, with the given function $V(R)$ of (19) and under the boundary conditions:

For the derivative ${\partial }_R\mathrm{\Psi }$, see (24).

From the equation (15), we find $A_{\mathrm{BF}}=|V{R}^{-1}{\partial }_R\mathrm{\Psi }|$ and from (9), $A_{\mathrm{grav}}=|{\partial }_R{\mathrm{\Phi }}_g|=V^2/R-A_{\mathrm{BF}}$. The diagram of MLS-plot will give $A_{\mathrm{DM}}$ when the abscissa is chosen at $A_g$. Setting $A_g$ with the computed value $A_{\mathrm{grav}}$, one must compare the diagram value $A_{\mathrm{DM}}$ with the computed value $A_{\mathrm{BF}}$.

(j) Iterative solving, and final outcomes: If those two do not match, the index-parameter $\kappa$ must be corrected to a new better value, and another try of computation must be done to find a better matching value. Iterative computation must be repeated until satisfactory matching is obtained between the computed curve ( $A_{\mathrm{obs}}$ vs. $A_{\mathrm{grav}}$ ) and the curve ( $A_c$ vs. $A_g$ ) of (3).

Thus, the triplet $[A_{\mathrm{obs}},A_{\mathrm{grav}},A_{\mathrm{BF}}]$ of theoretical computation has been found for the four galaxies examined. Those are plotted in the diagram MLS-plot of Figures 3 and 7 by the data points marked with $c$. Matching with the curve (3) marked with $a$ is remarkable.

The case of NGC3741 of Fig.7 must be given an additional remark. The data points $c$ in the diagram at the upper right of Fig.7 tend to deflect from the curve $a$ toward the line $b$ of $A_c=A_g$ at its right end. The right direction of the abscissa corresponds to larger values of $A_g$, which means the inner direction within the galaxy. In the inner part, the gravity effect tends to dominate the gauge field effect. Recall that in the solar-planetary system, the relationship $A_c=A_g$ is almost satisfied.

e) Parameter $\kappa$ as a Characterizing Index

It is found from the present numerical analyses that each galaxy is characterized by different values of the dimensionless index parameter $\kappa =c^2{\mu }_{\mathrm{F}}/4\pi G$ (Table I). In §IV B, we have seen three different types of galaxies:

a: 7814 (Bulge-dominated): $\kappa =O({10}^6)$, $V_{\mathrm{h}}\approx 230\frac{\mathrm{km}}{\mathrm{s}}$;

b: 6503 (Disk-dominated): $O({10}^7),V_{\mathrm{h}}\approx 120\frac{\mathrm{km}}{\mathrm{s}}$;

c: 3741 (Gas-dominated): $O({10}^8)$, $V_{\mathrm{h}}\approx 50\frac{\mathrm{km}}{\mathrm{s}}$.

It is remarkable to find that the parameter $\kappa$ increases by ten times from the top Bulge-dominated spiral galaxy, to the middle Disk-dominated spiral and another ten to the bottom Gas-dominated faint-spiral. This fact may imply that the index $\kappa$ denotes the degree of the amount of gas-content or the degree of relative contribution of the rotational current of the gas component to the gravity effect within the galaxy.

Another aspect is the following. The right-hand side of (30) implies for the halos (where $c{V}_{\ast }$ is approximately a constant $V_{\mathrm{h}}$ ) that the product $\kappa V_{\mathrm{h}}^2$ is approximated with a constant. This means $V_{\mathrm{h}}\propto 1/\sqrt{\kappa }$, decreasing as $\kappa$ increases, as seen in the above list of $(\mathbf{a},\mathbf{b},\mathbf{c})$.

It is noted that the dimensionless parameter $\kappa$ is proportional to the ratio ${\mu }_{\mathrm{F}}c/(4\pi G)$. This ratio signifies relative importance of the fluid current effect $({\mu }_{\mathrm{F}}vv)\rho$ of (21) to the gravity effect $(4\pi G)\rho$ of (20).

VI. CONCLUSION

This study is a novel approach to the cosmological issue of the dark matter effect observed in rotating galaxies, investigating a possible physical mechanism producing hyper orbital speeds in outer halo parts of galaxies. In cosmic space, it is crucial to recognize firstly that gas clouds are abundant and free to move in galactic and inter-galactic spaces. Structure and morphology of galaxies are diverse in regard to the relative amount of dark gas-clouds to that of shining stellar objects. Usually, galaxy forms are classified as Disk-dominated spiral, Gas-dominated faint spiral, or Bulge-dominated spiral.

Motion of the space-clouds is viewed as a flow of continuous fluid in curved space with gravity. Dynamical motions of the space-fluid of rotating galaxies are investigated by extending Fluid Dynamics to that in the frame of general relativity. The fluid flow, which is extended to the space of relativistic field, is reinforced by the fluid gauge theory equipped with a background (dark) gauge field conditioning the current continuity. The Gravity-space Fluid Dynamics thus developed captures the main feature of the dark-matter effect as the action of the gauge field on the motion of space fluids. In the present formulation, the stress-energy tensor in the general relativity is revised to take account of the general nature of the stress field by extending the isotropic pressure to an anisotropic stress field.

Regarding the dark-matter effect, McGaugh-Lellis-Schombert (2016) [1] found a strong evidence, that shows existence of a functional correlation between the observed centripetal radial-acceleration and the gravitational acceleration predicted by observed baryon distribution within galaxy. This implies that the dark matter contribution is specified by the baryon distribution. But their inter-connection is mysteriously twisted between the visible matters and the physics producing the rotational motion. Present theory describes this aspect successfully and gives an explicit mathematical expression to the acceleration attributed to the dark-matter effect.

The present study takes a new double-sided approach both dynamically and physically: namely incorporating a new dynamical field of dark gauge-field $aa$ and attacking the system with a new physics using anisotropic stress fields. The dark matter effect is created by the action of the gauge field $aa$. The gauge field is determined by an equation in which the field $aa$ is excited by the current flux $\rho vv$. The enhanced acceleration attributed to the dark-matter effect is given by that of fluid Lorentz force $(vv\times bb{)}_R$ toward the gravity center. Namely, the rotating current flux $\rho vv$ in the azimuthal direction creates the centripetal acceleration toward the center. The mechanism is twisting.

It is a central point in the present study that the mechanical balance equation (9), $-V^2/R+{\partial }_R{\mathrm{\Phi }}_g=(vv\times bb{)}_R$ of the galaxy dynamics, is just another expression of the equation (4) with the sign reversed: $-A_c+A_g=-A_{\mathrm{DM}}$ of the MLS-plot. In addition, the computations according to $(10)\sim (12)$ give the results perfectly matching the fitting curve (3) of observations. Note that the present theoretical study is based on the Gravity-space Fluid Dynamics, developed by Kambe [7].

The MLS-plot found by McGaugh et al. [1] is interpreted in the section IV A with adding the data gained by the present study, which is shown by Fig. 3. The successful matching of the present theory (9) with the observation relation (4) implies that the present approach has captured an essential aspect of the Dark Matter effect, represented diagramatically by the MLS-plot and expressed mathematically by the fitting curve (3). Note that both of the plot and curve were extracted from the data of hundreds of rotationally supported galaxies.

Agreement between the astronomical data and the physics data deduced from the present theory is excellent. This agreement implies that the space clouds exist abundantly in the galactic halo space and their amount is sufficient for the effective action of the fluid gauge field.

It is found from the present numerical analyses that each galaxy supported rotationally is characterized with different values of a dimensionless index parameter, $\kappa =c^2{\mu }_{\mathrm{F}}/(4\pi G)$. From the right-hand side of (30), it is seen that the orbital velocity $V_{\mathrm{h}}(\approx c{V}_{\ast })$ in the halo increases inversely to the magnitude of $\kappa$. In addition, since $\kappa \propto {\mu }_{\mathrm{F}}/G$, this ratio signifies relative importance of the fluid current effect $({\mu }_{\mathrm{F}}v)\rho$ to the gravity effect $(4\pi G)\rho$, as noted in §VE.

The galactic inner space is connected continuously to the deep-outer space by the mechanical help of the fluid gauge field, without presence of dark matters.

ACKNOWLEDGMENTS

The authors would like to express thanks to Prof. Emeritus Yoshiaki Sofue (University of Tokyo) for discussions on galaxies and rotation curves.

Formatting of the present text is helped by the Overleaf for its creation.

Appendix A: Fluid Gauge Theory (FGT) in Flat Space, Summarized

According to the relativistic FGT theory ([4], or §2 & §5 of [7]) in flat Lorentzian space, the fluid system is described by the total Lagrangian ${\mathcal{L}}^{\mathrm{FGT}}$ consisting of three components, ${\mathcal{L}}^{\mathrm{FGT}}={\mathcal{L}}_{\mathrm{FM}}+{\mathcal{L}}_{\mathrm{int}}+{\mathcal{L}}_{\mathrm{GF}}$:

where the overlined values denote proper values and the Lagrangian ${\mathcal{L}}_{\mathrm{GF}}$ includes a free parameter $\mu$ to be fixed later (Section V):

The first Lagrangian ${\mathcal{L}}_{\mathrm{FM}}$ describes a perfect fluid in motion with 4-current mass flux $j^{\nu }=\rho v^{\nu }$ with $v^{\nu }=(c,v^1,v^2,v^3)$, and the third ${\mathcal{L}}_{\mathrm{GF}}$ describes an action of a background gauge field $a_{\nu }$ so as to ensure the fluid motion to satisfy mass conservation (to be shown later), while the middle ${\mathcal{L}}_{\mathrm{int}}$ describes their mutual interaction between $j^{\nu }$ and the gauge-field $a_{\nu }$.

Equations governing the system:

Variational principle is applied to ${\mathcal{L}}^{\mathrm{FGT}}$ to derive governing equations. The equation of motion is deduced as

in the non-relativistic limit as $\beta =|vv|/c\to 0$. This is the Euler's equation with the additional term $\rho f_{k\nu }{v}^{\nu }$ on the right hand side. The first term $-{\partial }_{k}p$ came from the isotropic pressure stress ${\sigma }_{jk}^{\mathrm{I}}=-p{\delta }_{jk}$. The second is a new term that came from the anisotropic stress ${\sigma }_{jk}^{\mathrm{A}}$ to be given below.

The equation governing the gauge field $a_{\nu }$ is derived from the variational principle as

[4], where $\mu$ of (A3) is a control parameter, hence redefined here as ${\mu }_{\mathrm{F}}$, which controls the degree of mutual interaction between the current $j^{\nu }$ and the field strength tensor $f^{\nu \lambda }$ of the background gauge field.

Thus it is seen that the fluid gauge theory represents a broader class of flow fields than the current Eulerian field. By the help of the background field $a^{\nu }$, the system covers a wider family of flow fields of a perfect fluid (an inviscid fluid). In the presence of the gauge field $a^{\nu }$, the governing equation is given by (A5)

The equation (A5) can be transformed to very illuminating form, represented with an equivalent 3-vector form as follows:

Note that this includes the Lorentz-type force $f{f}_a$ in fluid-flow field which is neutral electrically. The role of charge density in the electromagnetism is played here by the mass density $\rho$.

Significance of fluid Lorentz acceleration $f{f}_a$

Significance of $f{f}_a$ is interpreted from two aspects. Firstly, as seen in (A8), the acceleration $f{f}_a$ is apparently independent of the mass density $\rho$ although the $bb$ -field is controlled by $jj=\rho vv$ from (A12). The $f{f}_a$ instead depends on the velocity $vv$ unlike the gravity acceleration, as seen from (9) and (10). In addition, it depends on the time derivative ${\partial }_{t}aa$ and rotational term $\mathrm{\nabla }\times aa$. Hence the $f{f}_a$ would become significant in turbulent flow fields in which flow fields are time-dependent and rotational. The fluid Lorentz acceleration $f{f}_a$ is regarded as a generalization of the pressure force $-\mathrm{\nabla }p$, as seen next.

Secondly, physical meaning of $f{f}_a$ may be given as follows. The force field $F{F}_a\equiv \rho f{f}_a$ is represented by the stress field $M^{\nu k}$. In fact, regarding the spatial components, the $k$ -th component of the force $F{F}_a\equiv \rho f{f}_a$ can be written as follows ( $i,k=1,2,3$ ):

where ${\partial }_{\nu }=(c^{-1}{\partial }_t,{\partial }_k)$, and ${\mu }_{\mathrm{F}}$ and $ϵ=1/({\mu }_{\mathrm{F}}{c}^2)$ are parameters of flow fields. The equality $(\rho ee+\rho vv\times bb{)}_k=-{\partial }_{\nu }{M}^{\nu k}$ can be shown by using (A12) and (A13). The stress tensor $M^{ik}$ of (A10) as well as the parameters $ϵ$ and ${\mu }_{\mathrm{F}}$ are analogous to the Maxwell stress tensor of electromagnetism. The term $(-\mathrm{\nabla }p{)}^k$ on the right-hand side of (A7) can be written as $-{\partial }_j(p{\delta }^{jk})$, a force from the isotropic pressure stress $-p{\delta }^{jk}$. According to the present fluid gauge theory, the state of isotropic pressure stress $p{\delta }^{jk}$ of Eulerian system is extended to the state of combined anisotropic stress $p{\delta }^{jk}+M^{jk}$.

Equations of $\mathbf{a}$, $\mathbf{b}$ and $\mathbf{e}$: Using the 3-vector notation $\bar{\mathbf{a}}=(a_1,a_2,a_3)$, the 4-field $a_{\nu }$ is rewritten as $(\varphi ,\mathbf{a})$. Then, two 3-vectors $\mathbf{b}$ and $\mathbf{e}$ are defined by

where $bb$ and $ee$ are introduced as a pair of fluid Maxwell fields in the fluid system. If the gauge field $a_{\nu }$ is represented as $a_{\nu }={\partial }_{\nu }\mathrm{\Psi }$, all the components $f_{\nu \lambda }$ and $f^{\nu \lambda }$ vanish. Correspondingly, both of $bb$ and $ee$ vanish.

Using the definitions (A11), the equation (A6) is transformed to a pair of equations analogous to the Maxwell equations of Electromagnetism. In fact, with using the relations $dd=ϵee$ and $hh=bb/{\mu }_{\mathrm{F}}$ where $ϵ\equiv 1/({\mu }_{\mathrm{F}}{c}^2)$, the equation (A6) gives a pair of Maxwell equations:

Definition (A11) leads to another pair:

Equation of current conservation: The equation of current conservation can be derived from Eq.(A6), which is directly connected to the gauge-invariant property of the Lagrangian ${\mathcal{L}}_{\mathrm{GF}}$. Applying the divergence operator ${\partial }_{\nu }$ on (A6), one obtains $0={\partial }_{\nu }{\partial }_{\lambda }{f}^{\nu \lambda }={\mu }_{\mathrm{F}}{\partial }_{\nu }{j}^{\nu }$. Hence, vanishing of the last expression leads to the current conservation equation:

Thus the third ${\mathcal{L}}_{\mathrm{GF}}$ ensures the mass conservation.

Appendix B: 3D density, distributing normal to disk

The gravity potential ${\mathrm{\Phi }}_g$ is influenced naturally by 3D density distribution $\rho (Z,R)$ normal to the disk plane $Z=0$ according to the equation (10): ${\mathrm{\nabla }}^2{\mathrm{\Phi }}_g=4\pi G\rho (Z,R)$. Let us consider the simplest case of $\rho (Z,R)$ factorized as

where the thickness $\mathrm{\Delta }$ is assumed to be a constant for simplicity. The reason why $Z^4$ is used in $f(Z)$ becomes clear below. In view of the linear nature of ${\mathrm{\nabla }}^2{\mathrm{\Phi }}_g=4\pi Gf(Z){\rho }_D(R)$ with respect to ${\mathrm{\Phi }}_g$, the potential ${\mathrm{\Phi }}_g(Z,R)$ is also factorized as of the form ${\mathrm{\Phi }}_g=f(Z)Q_g(R)$. Substituting this into the equation

Fig.3, while the curves $c$ denote the data points corresponding to each galaxy of the diagram.

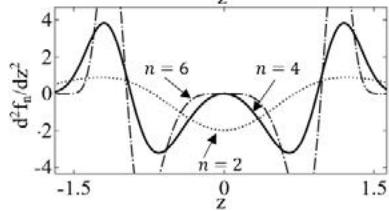

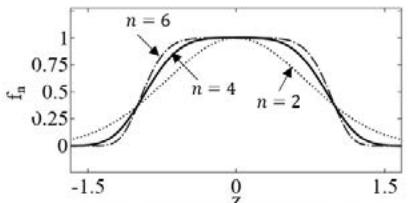

FIG. 8. The $z$ -factor $f_n(z)$ for normal distribution: $n=2,4,6$

${\mathrm{\nabla }}^2{\mathrm{\Phi }}_g=4\pi Gf(Z){\rho }_D(R)$ and dividing both sides with $f(Z)Q_g(R)$, we obtain

Eliminating $f^{-1}{\partial }_z^{2}f$ from the above two, we obtain

where ${\mathrm{\nabla }}_R^2\equiv R^{-1}{\partial }_R(R{\partial }_R)$. Over the galactic disk plane $z=0$, this reduces to

On the other hand, the Poisson equation (10) for the gravitational potential ${\mathrm{\Phi }}_g$ can be written on the disk plane $(Z=0)$ under axisymmetry as

If the term ${\partial }_Z^2{\mathrm{\Phi }}_g$ vanishes, we have

This is equivalent to the equation (B5).

Thus, it is found that the 2D axi-symmetric Poisson equation (B7) can describe the 3D density distribution as far as the normal distribution of $\rho$ is represented at least as (B1).

Next, consider other cases such as Gaussian or $\exp [-z^n]$ distribution to the $Z$ direction. Suppose the density is like (B1), but the $f(Z)$ factor is given by

Then, we have

In the Gaussian case $\rho \propto e^{-z^2}{\rho }_D(R)$, we have $f_2^{-1}{\partial }_z^2{f}_2=-2+4z^2$, which does not vanish over the disk $z=0$. Hence, the 3D Poisson equation (B2) does not reduce to 2D problem (B7) for $n=2$. However, for even integer $n\ge 4$, the 3D equation (B2) reduces to the 2D problem (B7).

The last result is very interesting, which can be seen visually in the Figure 8.
