Influence about Zinc for Transient; Steady State Creep Properties, Microstructure and Characteristics in Aluminum Alloys

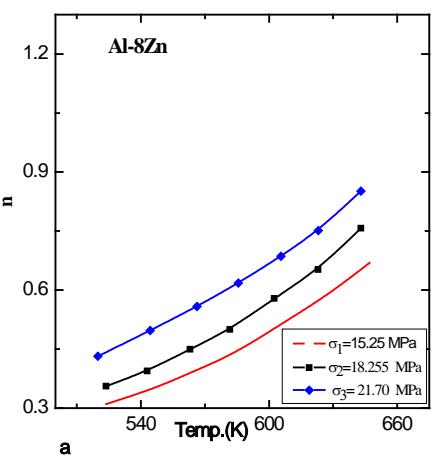

Regardless of enormous studies besides of attempts dedicated to studying the creep attitude about present samples, a complete characterization about creep on the foundation of precise structural coefficient and testing stipulations will remain wanting soon. A creep study will usually be performed by an expression called creep system. This study expresses more notification of transient and steady creep conductance in aluminum-zinc alloys. Our study was investigated around 15.25, 18.255, and 21.70 MPa. All tests about working degree 523 until 643 kelvin. The transient creep is expressed using straintransient = βeta timen ; the constant n has values around 0.31 to 0.85 in the case of Al-8Zn, and it ranges from 0.44 to 1.21 in the case of Al-85Zn binary samples. The βeta has a rate of about -4.3 until -12.54 and -6.1 until -13.5 for the used present specimens consecutively. Amounts for activation energy are about 45.6 and 39.8 KJ/mole in low-temperature regions for tested alloys and 62.4 and 45.7 KJ/mole in high-temperature regions. Coefficient (m) is increased by increasing the working temperature.
